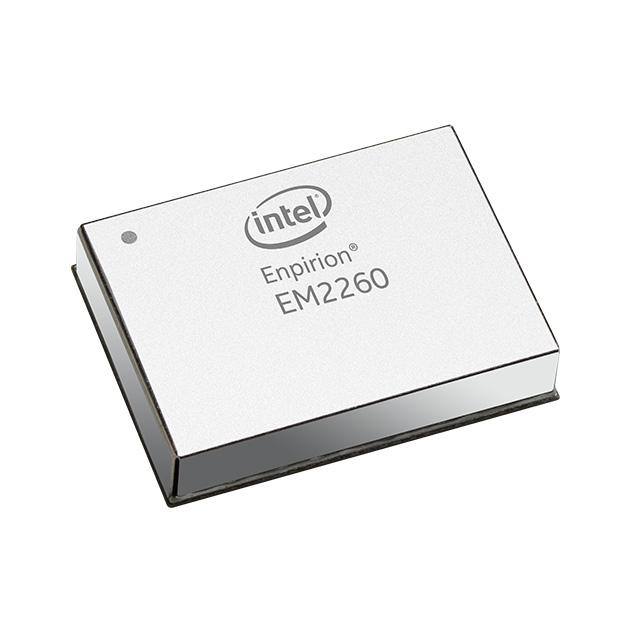

Intel EM2260P01QI

EM2260P01QI Intel
EM2260P01QI
Intel

Product Information

HTSUS:
8504.40.7018
RoHS Status:
RoHS Compliant
Voltage - Output 1:
0.5 ~ 1.3V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
60A
Package / Case:
152-PowerBFQFN Module
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module, Digital
Applications:
ITE (Commercial)
Voltage - Output 4:
-
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
88%
Voltage - Input (Max):
16V
Control Features:
Enable, Active High
Package:
Tray
Size / Dimension:
0.91" L x 0.71" W x 0.19" H (23.0mm x 18.0mm x 4.9mm)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Features:
Remote On/Off, OCP, OTP, UVLO
Mounting Type:
Surface Mount
Series:
Enpirion®
Supplier Device Package:
152-QFN (23x18)
Base Product Number:
EM2260
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by Intel. The manufacturer part number is EM2260P01QI. It is assigned with possible HTSUS value of 8504.40.7018. The product is rohs compliant. It has a 0.5 ~ 1.3v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 60a. Moreover, the product comes in 152-powerbfqfn module. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module, digital configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. It is a highly efficient product with an 88% of high efficiency. Its maximum input voltage is 16v. Possible control features include enable, active high. It is shipped in tray package . The product's diameters include 0.91" l x 0.71" w x 0.19" h (23.0mm x 18.0mm x 4.9mm). Its typical moisture sensitivity level is 3 (168 hours). The splendid features of the product include remote on/off, ocp, otp, uvlo. The product is available in surface mount configuration. The product enpirion®, is a highly preferred choice for users. 152-qfn (23x18) is the supplier device package value. Moreover, it corresponds to em2260, a base product number of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
EM2yyy 22/Nov/2019(PCN Assembly/Origin)
pdf icon
Mult Dev BOM Chg 26/Jun/2020(PCN Design/Specification)
pdf icon
Mult Dev Doc Updates 22/May/2020(PCN Design/Specification)
pdf icon
Multi Dev obs 15/Jul/2022(PCN Obsolescence/ EOL)
pdf icon
Mult Dev EOL 17/Sep/2021(PCN Obsolescence/ EOL)
pdf icon
Mult Dev EOL Update 27/Jan/2022(PCN Obsolescence/ EOL)
pdf icon
EM2260P01QI Datasheet(Datasheets)
pdf icon
Mult Dev Label Chgs 24/Feb/2020(PCN Packaging)
pdf icon
Mult Dev Label CHG 24/Jan/2020(PCN Packaging)
