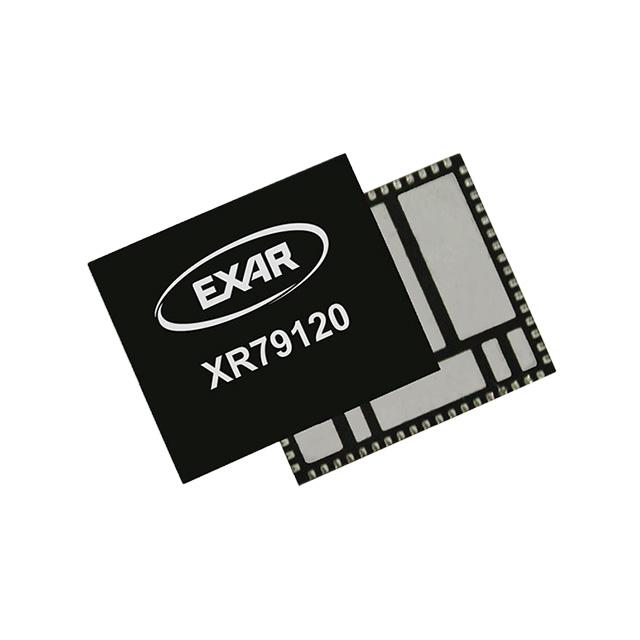

MaxLinear, Inc. XR79120EL-F

XR79120EL-F MaxLinear, Inc.
MaxLinear, Inc.

Product Information

HTSUS:
8542.39.0060
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 125°C
Current - Output (Max):
20A
Package / Case:
74-PowerBQFN Module
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module
title:
XR79120EL-F
Voltage - Output 1:
0.6 ~ 5.5V
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
XR79120EL-F Models
Efficiency:
93%
Applications:
ITE (Commercial)
edacadModelUrl:
/en/models/5246228
Voltage - Input (Max):
22V
Size / Dimension:
0.31" L x 0.31" W x 0.16" H (8.0mm x 8.0mm x 4.0mm)
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Features:
Remote On/Off, OCP, OTP, SCP, UVLO
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
74-QFN (12x14)
Packaging:
Tray
Base Product Number:
XR79120
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by MaxLinear, Inc.. The manufacturer part number is XR79120EL-F. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. The maximum product's output current is 20a. Moreover, the product comes in 74-powerbqfn module. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module configuration. It has a 0.6 ~ 5.5v output voltage. It is a highly efficient product with an 93% of high efficiency. The product is widely employed in ite (commercial). Its maximum input voltage is 22v. The product's diameters include 0.31" l x 0.31" w x 0.16" h (8.0mm x 8.0mm x 4.0mm). It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is 3 (168 hours). The splendid features of the product include remote on/off, ocp, otp, scp, uvlo. The product is available in surface mount configuration. 74-qfn (12x14) is the supplier device package value. In addition, tray is the available packaging type of the product. Moreover, it corresponds to xr79120, a base product number of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

pdf icon
XR79xxxEL-F 03/Oct/2023(PCN Assembly/Origin)
pdf icon
XR79120 Datasheet(Datasheets)
