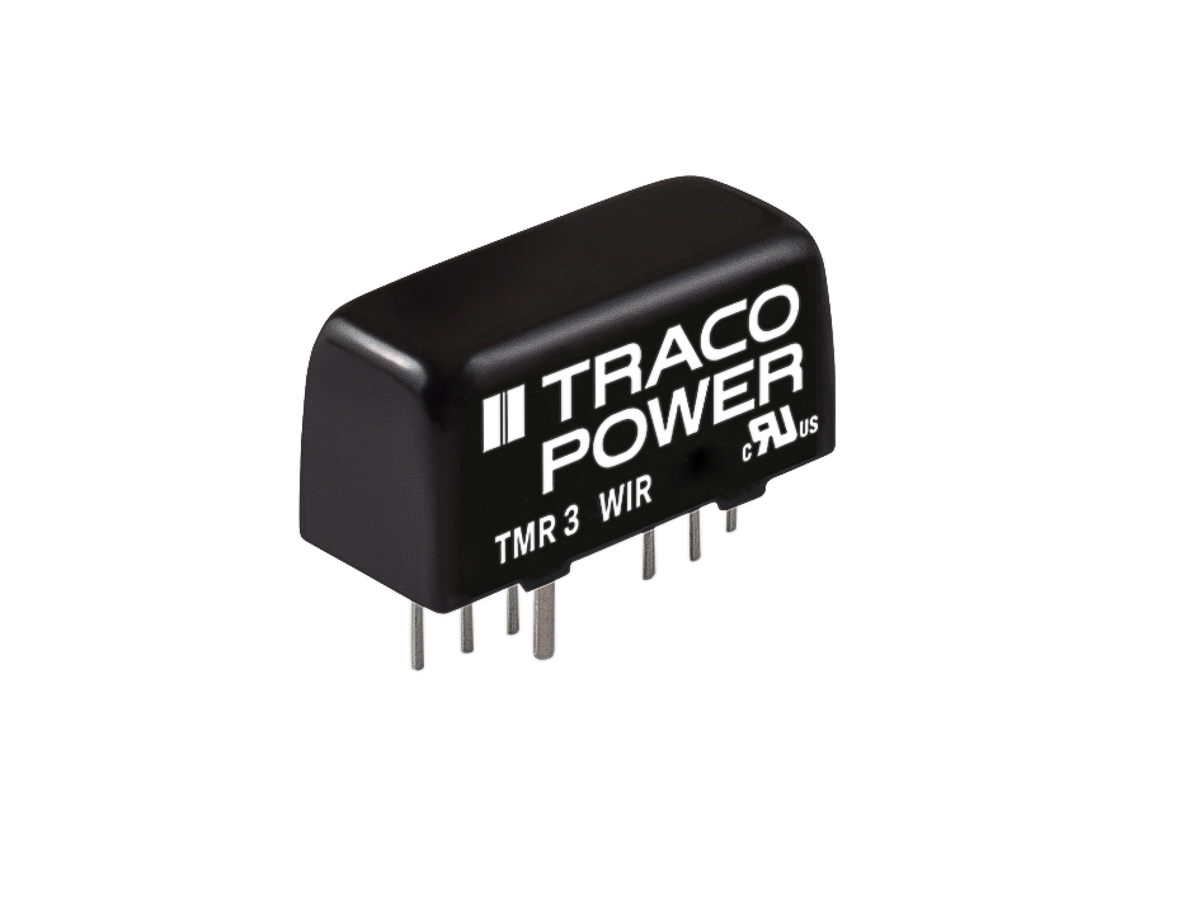

TRACOPOWER TMR 3WI 3W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout ±15V dc

TMR-3-2423WIR TRACOPOWER TMR 3WI 3W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout ±15V dc
TRACOPOWER

Product Information

Isolation Voltage:
1.5kV dc
Minimum Temperature:
-40°C
Isolated:
Yes
Width:
9.6mm
Maximum Temperature:
+85°C
Load Regulation:
1%
Standards Met:
cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1
Railway Approved:
Yes
Efficiency:
82%
Number of Outputs:
2
Package:
SIP 8
Length:
21.8mm
Medical Approved:
No
Output Current:
±100mA
Mounting Type:
Through Hole
Series:
TMR 3WIR
Input Voltage Range:
9 → 36 V dc
Depth:
11.2mm
Output Voltage:
±15V dc
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1512910&DisplayLogo=False
Input Voltage Nominal:
24 V dc
Power Rating:
3W
RoHs Compliant
Checking for live stock

This is TMR 3WI 3W Isolated DC-DC Converter Through Hole Vin 9 → 36 V dc Vout ±15V dc manufactured by TRACOPOWER. The manufacturer part number is TMR 3-2423WIR. It has 1.5kv dc isolation voltage. While its minimum temperature is -40°c. Isolated options - yes. Furthermore, the product is 9.6mm wide. The product has +85°c maximum temperature. Load Regulation - 1%. The product complies with all safety standards, such as culus listed, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-4-8, iec 60950-1, mil-std-810f, ul 94 v-0, ul/cul 60950-1. The product is railway approved yes . It is a highly efficient product with an 82% of high efficiency. Additionally, the product is supplied with 2 outputs. It is shipped in sip 8 package . Its accurate length is 21.8mm. Medical Approval - no. It carries ±100ma output current. The product is available in through hole configuration. The product tmr 3wir, is a highly preferred choice for users. It has 9 → 36 v dc of input voltage range. The product comes in 11.2mm depth. Features a ±15v dc output voltage. It has 24 v dc of nominal input voltage. Feature 3w of power rating.

pdf icon
TMR 3-2423WIR Datasheet(Technical Reference)
pdf icon
Catalogue - Railway Power Solutions(Technical Reference)
pdf icon
Selection Guide - DC/DC Converters and AC/DC Power Supplies(Technical Reference)
pdf icon
Application Note - TMR 3WIR Series(Technical Reference)
