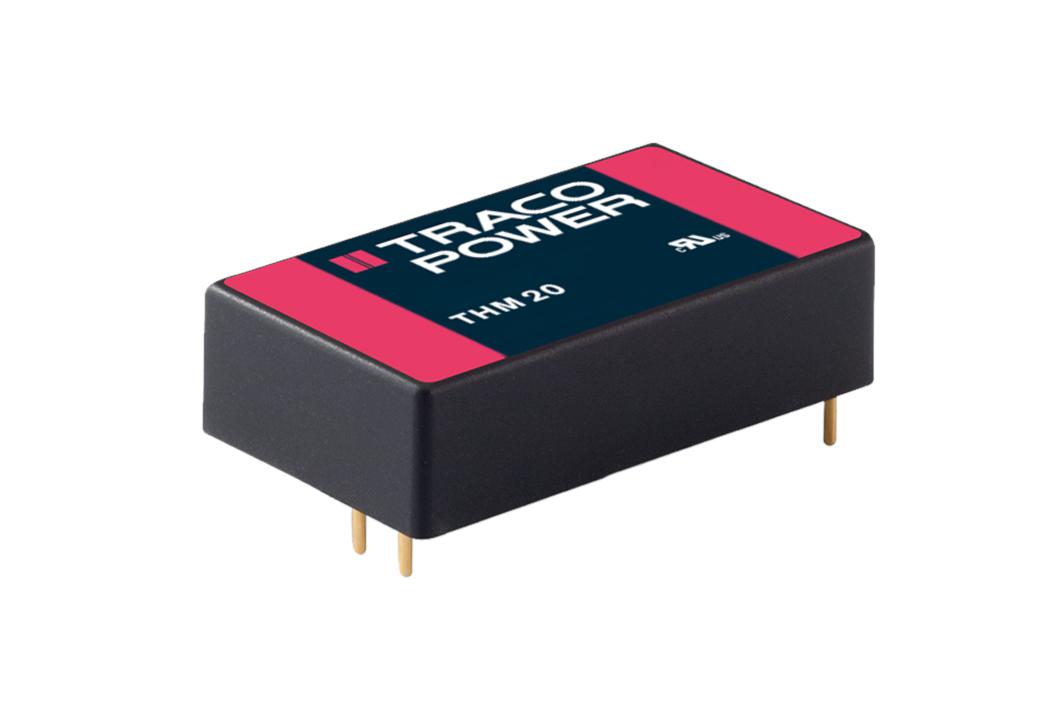

TRACOPOWER THM 20 20W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout ±12V dc Medical Approved

THM-20-2422 TRACOPOWER THM 20 20W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout ±12V dc Medical Approved
TRACOPOWER

Product Information

Number of Outputs:
2
Load Regulation:
0.01
Isolation Voltage:
5kV ac
Efficiency:
90%
Mounting Type:
Through Hole
Package:
1.6 x 1 in
Maximum Temperature:
+80°C
Series:
THM 20
Input Voltage Range:
18 → 36 V dc
Length:
40.6mm
Isolated:
Yes
Width:
25.4mm
Depth:
10.2mm
Output Voltage:
±12V dc
Medical Approved:
Yes
Minimum Temperature:
-40°C
Input Voltage Nominal:
24 V dc
Power Rating:
20W
Output Current:
±833mA
Standards Met:
ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F
RoHs Compliant
Checking for live stock

This is THM 20 20W Isolated DC-DC Converter Through Hole Vin 18 → 36 V dc Vout ±12V dc Medical Approved manufactured by TRACOPOWER. The manufacturer part number is THM 20-2422. Additionally, the product is supplied with 2 outputs. Load Regulation - 0.01. It has 5kv ac isolation voltage. It is a highly efficient product with an 90% of high efficiency. The product is available in through hole configuration. It is shipped in 1.6 x 1 in package . The product has +80°c maximum temperature. The product thm 20, is a highly preferred choice for users. It has 18 → 36 v dc of input voltage range. Its accurate length is 40.6mm. Isolated options - yes. Furthermore, the product is 25.4mm wide. The product comes in 10.2mm depth. Features a ±12v dc output voltage. Medical Approval - yes. While its minimum temperature is -40°c. It has 24 v dc of nominal input voltage. Feature 20w of power rating. It carries ±833ma output current. The product complies with all safety standards, such as ansi/aami es 60601-1, cb scheme iec 60601-1, culus recognised, emc, en 55011, en 55032, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-4-8, es60601-1, iec 60601-1-2, iec/en 60601-1, mil-std-810f.

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection Guide(Technical Reference)
pdf icon
Industrial Power Solutions Catalogue(Technical Reference)
pdf icon
Medical Power Solutions Catalogue(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search THM 20-2422 on website for other similar products.
We accept all major payment methods for all products including ET16728472. Please check your shopping cart at the time of order.
You can order TRACOPOWER brand products with THM 20-2422 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TRACOPOWER THM 20 20W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout ±12V dc Medical Approved. You can also check on our website or by contacting our customer support team for further order details on TRACOPOWER THM 20 20W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout ±12V dc Medical Approved.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16728472 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TRACOPOWER" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16728472.
Yes. We ship THM 20-2422 Internationally to many countries around the world.
