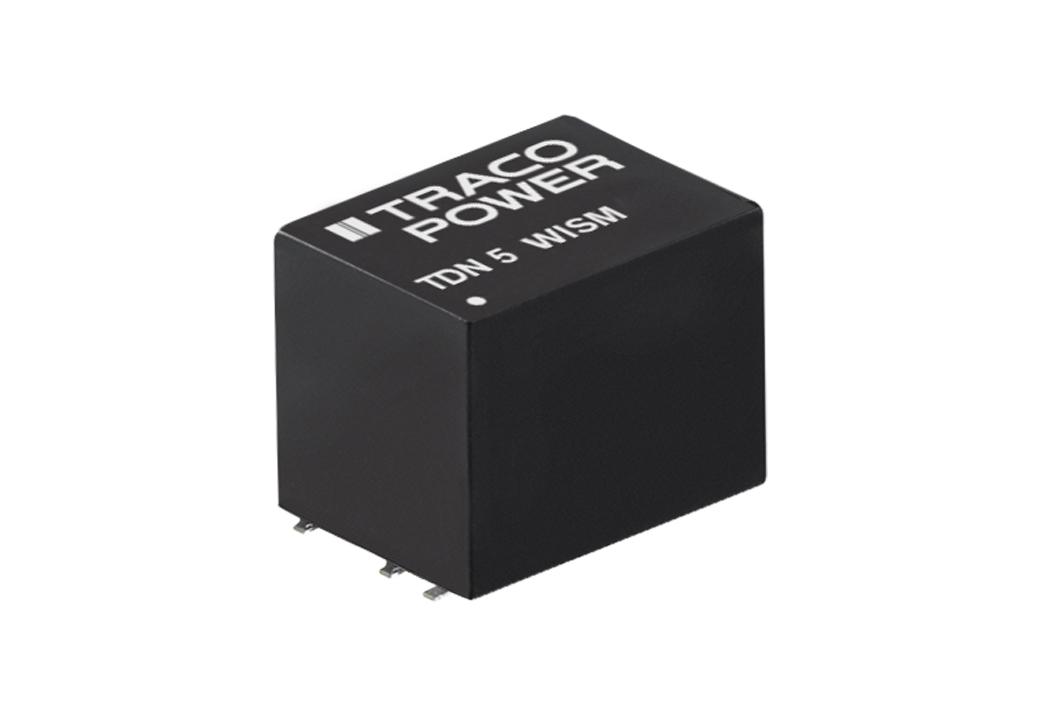

TRACOPOWER TDN 5WISM 5W Isolated DC-DC Converter Surface Mount, Vin 9 → 36 V dc, Vout ±5V dc

TDN-5-2421WISM TRACOPOWER TDN 5WISM 5W Isolated DC-DC Converter Surface Mount, Vin 9 → 36 V dc, Vout ±5V dc
TRACOPOWER

Product Information

Number of Outputs:
2
Load Regulation:
0.01
Isolation Voltage:
1.6kV dc
Efficiency:
80%
Mounting Type:
Surface Mount
Package:
SMD
Maximum Temperature:
+75°C
Series:
TDN 5WISM
Input Voltage Range:
9 → 36 V dc
Length:
13.2mm
Isolated:
Yes
Width:
9.1mm
Depth:
9.9mm
Output Voltage:
±5V dc
Minimum Temperature:
-40°C
Input Voltage Nominal:
24 V dc
Power Rating:
5W
Output Current:
±500mA
Standards Met:
EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F
RoHs Compliant
Checking for live stock

This is TDN 5WISM 5W Isolated DC-DC Converter Surface Mount Vin 9 → 36 V dc Vout ±5V dc manufactured by TRACOPOWER. The manufacturer part number is TDN 5-2421WISM. Additionally, the product is supplied with 2 outputs. Load Regulation - 0.01. It has 1.6kv dc isolation voltage. It is a highly efficient product with an 80% of high efficiency. The product is available in surface mount configuration. It is shipped in smd package . The product has +75°c maximum temperature. The product tdn 5wism, is a highly preferred choice for users. It has 9 → 36 v dc of input voltage range. Its accurate length is 13.2mm. Isolated options - yes. Furthermore, the product is 9.1mm wide. The product comes in 9.9mm depth. Features a ±5v dc output voltage. While its minimum temperature is -40°c. It has 24 v dc of nominal input voltage. Feature 5w of power rating. It carries ±500ma output current. The product complies with all safety standards, such as en 55022, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-4-8, mil-std-810f.

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection Guide(Technical Reference)
pdf icon
Traco Power Supplies and Converters Portfolio(Technical Reference)
pdf icon
Industrial Power Solutions Catalogue(Technical Reference)
