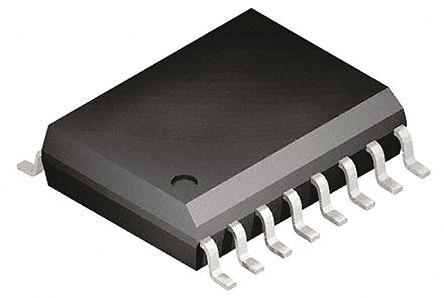

ON Semiconductor NCP3163BPWG, Inverting DC-DC Converter, Adjustable, 200mA 16-Pin, SOIC

NCP3163BPWG ON Semiconductor , Inverting DC-DC Converter, Adjustable, 200mA 16-Pin, SOIC
ON Semiconductor

Product Information

Dimensions:
10.45 x 7.6 x 2.55mm
Minimum Output Current:
200mA
Width:
7.6mm
Maximum Output Voltage:
24 V
Load Regulation:
80 mV
Output Type:
Adjustable
Maximum Switching Frequency:
288 kHz
Efficiency:
83%
Package Type:
SOIC
Maximum Operating Temperature:
+85 °C
Number of Outputs:
1
Converter Type:
Inverting
Line Regulation:
90 mV
Length:
10.45mm
Minimum Output Voltage:
-1 V
Pin Count:
16
Mounting Type:
Surface Mount
Height:
2.55mm
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
2.5 V
Maximum Output Current:
3.4A
Maximum Input Voltage:
40 V
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Inverting DC-DC Converter Adjustable 200mA 16-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is NCP3163BPWG. The given dimensions of the product include 10.45 x 7.6 x 2.55mm. Additionally, it is offered with 200ma minimum output current . Furthermore, the product is 7.6mm wide. Its output voltage (maximum) includes 24 v. Load Regulation - 80 mv. Furthermore, it has aadjustable output. It has a maximum 288 khz switching frequency. It is a highly efficient product with an 83% of high efficiency. The package is a sort of soic. It has a maximum operating temperature of +85 °c. Additionally, the product is supplied with 1 outputs. It is designed with standard inverting type converter . Has a line regulation of 90 mv. Its accurate length is 10.45mm. The product features -1 v minimum output voltage. It contains 16 pins. The product is available in surface mount configuration. In addition, the height is 2.55mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has 2.5 v of minimum input voltage. Featuring 3.4a of maximum output current. 40 v is the maximum voltage of the bespoke product. It has a switching regulator yes .
