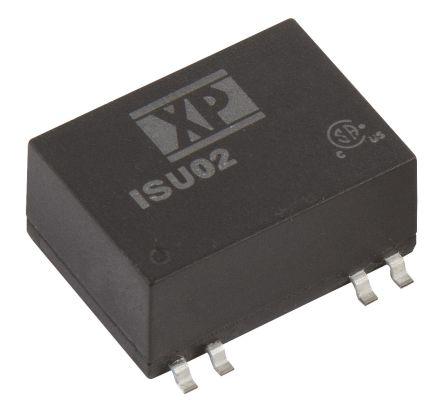

XP Power ISU0224S15

ISU0224S15 XP Power
XP Power

Product Information

Number of Outputs:
1
Load Regulation:
±1.0%
Isolation Voltage:
1.5kV dc
Efficiency:
82%
Mounting Type:
Surface Mount
Package:
SMD
Maximum Temperature:
+95°C
Series:
ISU02
Input Voltage Range:
9 → 36 V dc
Length:
19mm
Width:
17mm
Depth:
8.7mm
Output Voltage:
15V dc
Minimum Temperature:
-40°C
Input Voltage Nominal:
24 V dc
Power Rating:
2W
Output Current:
134mA
Standards Met:
ITE Safety Approvals
HTSUS:
8504.40.9580
Number of Outputs:
1
Supplier Device Package:
-
Power (Watts):
2 W
Current - Output (Max):
134mA
Approval Agency:
CE, UKCA, UL
Package / Case:
14-SMD Module, 7 Leads
Voltage - Input (Min):
9V
Type:
Isolated Module
title:
ISU0224S15
Voltage - Output 4:
-
Voltage - Output 1:
15V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
82%
Applications:
ITE (Commercial)
Voltage - Input (Max):
36V
Control Features:
-
Size / Dimension:
0.75" L x 0.59" W x 0.33" H (19.1mm x 15.0mm x 8.5mm)
standardLeadTime:
30 Weeks
Voltage - Isolation:
1.5 kV
Features:
Remote On/Off, SCP
Mounting Type:
Surface Mount
Series:
ISU02 (2W)
Operating Temperature:
-40°C ~ 95°C (With Derating)
Packaging:
Tube
Standard Number:
62368-1
Base Product Number:
ISU0224
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by XP Power. The manufacturer part number is ISU0224S15. Additionally, the product is supplied with 1 outputs. Load Regulation - ±1.0%. It has 1.5kv dc isolation voltage. It is a highly efficient product with an 82% of high efficiency. The product is available in surface mount configuration. It is shipped in smd package . The product has +95°c maximum temperature. The product isu02, is a highly preferred choice for users. It has 9 → 36 v dc of input voltage range. Its accurate length is 19mm. Furthermore, the product is 17mm wide. The product comes in 8.7mm depth. Features a 15v dc output voltage. While its minimum temperature is -40°c. It has 24 v dc of nominal input voltage. Feature 2w of power rating. It carries 134ma output current. The product complies with all safety standards, such as ite safety approvals. It is assigned with possible HTSUS value of 8504.40.9580. The product features power and watts of 2 w. The maximum product's output current is 134ma. It is approved by ce, ukca, ul. Moreover, the product comes in 14-smd module, 7 leads. It offers 9v of minimum input voltage. It comes in isolated module configuration. It has a 15v output voltage. The product is widely employed in ite (commercial). Its maximum input voltage is 36v. The product's diameters include 0.75" l x 0.59" w x 0.33" h (19.1mm x 15.0mm x 8.5mm). It has a long 30 weeks standard lead time. 1.5 kv of isolation voltage. The splendid features of the product include remote on/off, scp. The product isu02 (2w), is a highly preferred choice for users. The product has -40°c ~ 95°c (with derating) operating temperature range. In addition, tube is the available packaging type of the product. Standard number include: 62368-1. Moreover, it corresponds to isu0224, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ISU02_Datasheet(Technical Reference)
pdf icon
ISU02 Series Datasheet(Datasheets)
