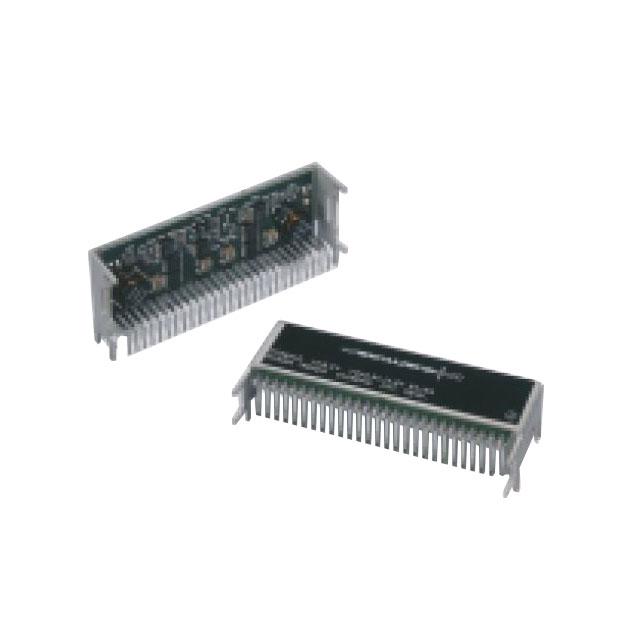

Texas Instruments PT6942A

PT6942A Texas Instruments
Texas Instruments

Product Information

HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
3.3V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
6A, 6A
Package / Case:
27-SIP Module, Horizontal
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
1.8V
Voltage - Output 3:
-
Efficiency:
91%
Voltage - Input (Max):
5.5V
Package:
Tray
Size / Dimension:
3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Through Hole, Horizontal
Series:
Excalibur™ PT6940
Base Product Number:
PT6942
Number of Outputs:
2
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is PT6942A. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 3.3v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 6a, 6a. Moreover, the product comes in 27-sip module, horizontal. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. 1.8v of voltage output 2. It is a highly efficient product with an 91% of high efficiency. Its maximum input voltage is 5.5v. It is shipped in tray package . The product's diameters include 3.00" l x 1.19" w x 0.50" h (76.2mm x 30.2mm x 12.7mm). Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole, horizontal configuration. The product excalibur™ pt6940, is a highly preferred choice for users. Moreover, it corresponds to pt6942, a base product number of the product. Additionally, the product is supplied with 2 outputs. The product is designated with the ear99 code number.
