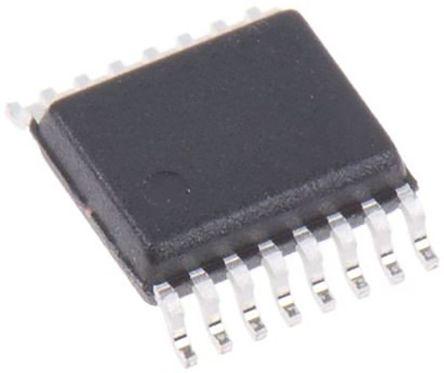

Maxim MAX1672EEE+, Inverting, Non-Inverting, Step Down/Step Up DC-DC Converter Adjustable/Fixed 16-Pin, QSOP

MAX1672EEE- Maxim MAX1672EEE+, Inverting, Non-Inverting, Step Down/Step Up DC-DC Converter Adjustable/Fixed 16-Pin, QSOP
MAX1672EEE+
Maxim

Product Information

Number of Outputs:
1
Converter Type:
Inverting, Non-Inverting, Step Down/Step Up
Load Regulation:
0.003 %/mA
Dimensions:
4.98 x 3.99 x 1.55mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Output Type:
Adjustable, Fixed
Height:
1.55mm
Width:
3.99mm
Length:
4.98mm
Maximum Input Voltage:
11 V
Package Type:
QSOP
Switching Regulator:
Yes
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
1.8 V
Maximum Output Current:
300mA
Pin Count:
16
Line Regulation:
0.15 %/V
RoHs Compliant
Checking for live stock

This is Inverting Non-Inverting Step Down/Step Up DC-DC Converter Adjustable/Fixed 16-Pin QSOP manufactured by Maxim. The manufacturer part number is MAX1672EEE+. Additionally, the product is supplied with 1 outputs. It is designed with standard inverting, non-inverting, step down/step up type converter . Load Regulation - 0.003 %/ma. The given dimensions of the product include 4.98 x 3.99 x 1.55mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. Furthermore, it has aadjustable, fixed output. In addition, the height is 1.55mm. Furthermore, the product is 3.99mm wide. Its accurate length is 4.98mm. 11 v is the maximum voltage of the bespoke product. The package is a sort of qsop. It has a switching regulator yes . Whereas, the minimum operating temperature of the product is -40 °c. The product has 1.8 v of minimum input voltage. Featuring 300ma of maximum output current. It contains 16 pins. Has a line regulation of 0.15 %/v.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
