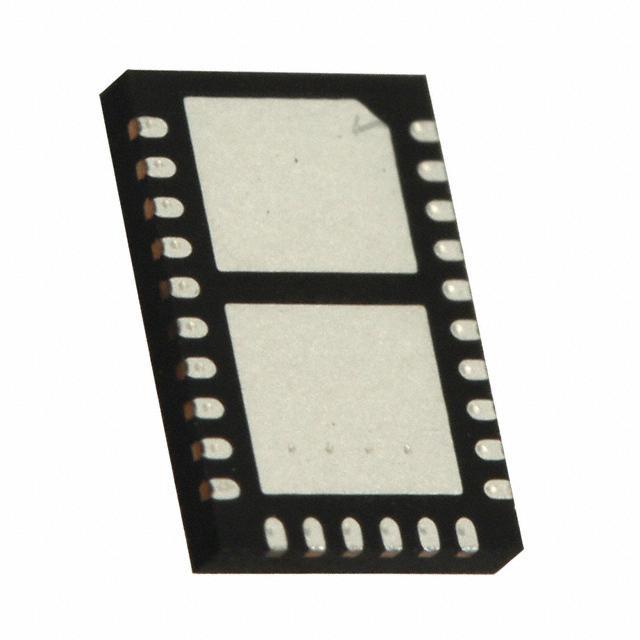

Linear Technology LT3690EUFE#PBF

LT3690EUFE-PBF Linear Technology LT3690EUFE#PBF
LT3690EUFE#PBF
LT3690EUFE#PBF
Linear Technology

Product Information

Number of Outputs:
1
Converter Type:
Step Down
Dimensions:
4 x 6 x 0.7mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
20 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
1.68 MHz
Output Type:
Adjustable
Height:
0.7mm
Width:
6mm
Length:
4mm
Maximum Input Voltage:
36 V
Package Type:
QFN
Switching Regulator:
Yes
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.8 V
Minimum Input Voltage:
3.9 V
Maximum Output Current:
4A
Pin Count:
26
Line Regulation:
0.01 %/V
Manufacturer Standard Lead Time:
6 Weeks
Synchronous Rectifier:
No
Frequency - Switching:
138kHz ~ 1.5MHz
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
26-WFQFN Exposed Pad
Voltage - Input (Min):
3.9V
Function:
Step-Down
Voltage - Output (Min/Fixed):
0.8V
Output Type:
Adjustable
Current - Output:
4A
Voltage - Input (Max):
36V
Standard Package:
61
Voltage - Output (Max):
20V
Manufacturer:
Linear Technology
Number of Outputs:
1
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Supplier Device Package:
26-QFN (4x6)
Packaging:
Tube
Output Configuration:
Positive
Topology:
Buck
Other Names:
LT3690EUFEPBF
RoHs Compliant
Checking for live stock

This is manufactured by Linear Technology. The manufacturer part number is LT3690EUFE#PBF. Additionally, the product is supplied with 1 outputs. It is designed with standard step down type converter . The given dimensions of the product include 4 x 6 x 0.7mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 20 v. It has a maximum operating temperature of +125 °c. It has a maximum 1.68 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.7mm. Furthermore, the product is 6mm wide. Its accurate length is 4mm. 36 v is the maximum voltage of the bespoke product. The package is a sort of qfn. It has a switching regulator yes . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.8 v minimum output voltage. The product has 3.9 v of minimum input voltage. Featuring 4a of maximum output current. It contains 26 pins. Has a line regulation of 0.01 %/v. It has typical 6 weeks of manufacturer standard lead time. This also includes no synchronous rectifier. The switching frequency of the standard product is 138khz ~ 1.5mhz. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 26-wfqfn exposed pad. It offers 3.9v of minimum input voltage. It performs basic function of step-down. The minimum or fixed output voltage include 0.8v. While, the output current includes 4a. Its maximum input voltage is 36v. It is available in the standard package of 61. While the maximum output voltage is 20v. The linear technology's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). 26-qfn (4x6) is the supplier device package value. In addition, tube is the available packaging type of the product. It boasts positive output configuration. Topology includes buck. Alternative Names include lt3690eufepbf.
