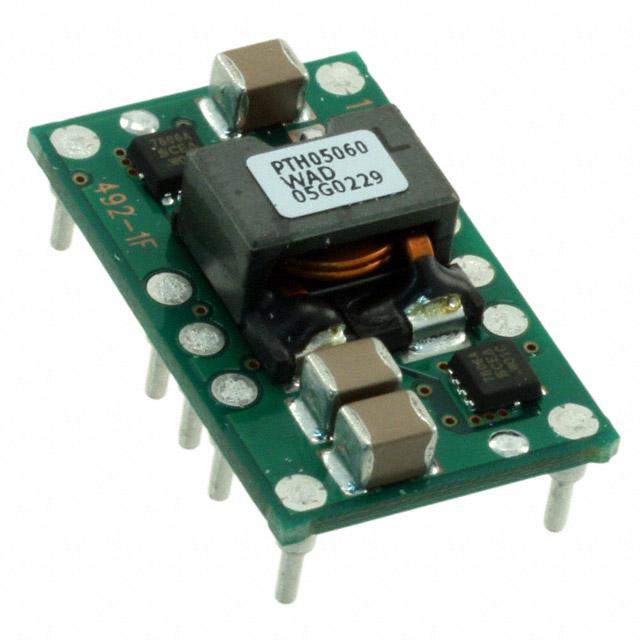

Texas Instruments PTH05060WAD

PTH05060WAD Texas Instruments
PTH05060WAD
Texas Instruments

Product Information

Number of Outputs:
1
Load Regulation:
±12 mV
Dimensions:
25.27 x 15.75 x 8.75mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+85 °C
Height:
8.75mm
Width:
15.75mm
Length:
25.27mm
Package Type:
DIP Module
Minimum Operating Temperature:
-40 °C
Maximum Switching Frequency:
325 Khz
Maximum Output Current:
10A
Pin Count:
10
Line Regulation:
±10 mV
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
0.8 ~ 3.6V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
10A
Package / Case:
10-DIP Module
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
PTH05060WAD Models
Efficiency:
94%
Voltage - Input (Max):
5.5V
edacadModelUrl:
/en/models/1576718
Size / Dimension:
1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
standardLeadTime:
18 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
PTH05060W
Packaging:
Tray
Base Product Number:
PTH05060
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is PTH05060WAD. Additionally, the product is supplied with 1 outputs. Load Regulation - ±12 mv. The given dimensions of the product include 25.27 x 15.75 x 8.75mm. The product is available in through hole configuration. It has a maximum operating temperature of +85 °c. In addition, the height is 8.75mm. Furthermore, the product is 15.75mm wide. Its accurate length is 25.27mm. The package is a sort of dip module. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum 325 khz switching frequency. Featuring 10a of maximum output current. It contains 10 pins. Has a line regulation of ±10 mv. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 0.8 ~ 3.6v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 10a. Moreover, the product comes in 10-dip module. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. It is a highly efficient product with an 94% of high efficiency. Its maximum input voltage is 5.5v. The product's diameters include 1.00" l x 0.62" w x 0.35" h (25.4mm x 15.7mm x 8.9mm). It has a long 18 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product pth05060w, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, it corresponds to pth05060, a base product number of the product. The product is designated with the ear99 code number.
