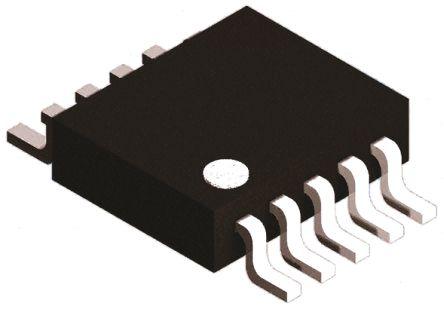

Linear Technology LTC3103EMSE#PBF, Step Down DC-DC Converter, Adjustable 10-Pin, Plastic MSOP

LTC3103EMSE-PBF Linear Technology LTC3103EMSE#PBF, Step Down DC-DC Converter, Adjustable 10-Pin, Plastic MSOP
Linear Technology

Product Information

Number of Outputs:
1
Converter Type:
Step Down
Dimensions:
3 x 3 x 0.86mm
Mounting Type:
Surface Mount
Efficiency:
95%
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
1.2 MHz
Output Type:
Adjustable
Height:
0.86mm
Width:
3mm
Length:
3mm
Maximum Input Voltage:
15 V
Package Type:
Plastic MSOP
Maximum Output Voltage:
13.8 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.6 V
Minimum Input Voltage:
2.5 V
Maximum Output Current:
300mA
Pin Count:
10
Line Regulation:
0.05 %/V
RoHs Compliant
Checking for live stock

This is Step Down DC-DC Converter Adjustable 10-Pin Plastic MSOP manufactured by Linear Technology. The manufacturer part number is LTC3103EMSE#PBF. Additionally, the product is supplied with 1 outputs. It is designed with standard step down type converter . The given dimensions of the product include 3 x 3 x 0.86mm. The product is available in surface mount configuration. It is a highly efficient product with an 95% of high efficiency. It has a maximum operating temperature of +125 °c. It has a maximum 1.2 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.86mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. 15 v is the maximum voltage of the bespoke product. The package is a sort of plastic msop. Its output voltage (maximum) includes 13.8 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.6 v minimum output voltage. The product has 2.5 v of minimum input voltage. Featuring 300ma of maximum output current. It contains 10 pins. Has a line regulation of 0.05 %/v.
