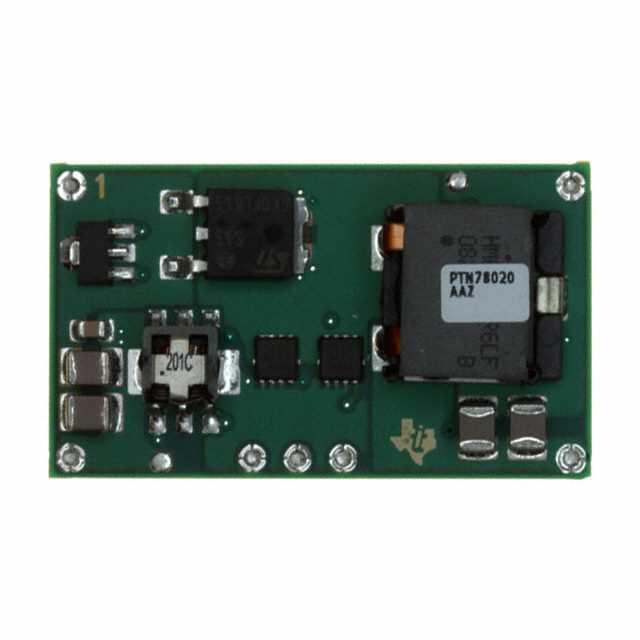

Texas Instruments PTN78020AAZT

PTN78020AAZT Texas Instruments
Texas Instruments

Product Information

HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
-15 ~ -3.3V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
4A
Package / Case:
7-SMD Module
Voltage - Input (Min):
9V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
PTN78020AAZT Models
Efficiency:
87%
Voltage - Input (Max):
29V
edacadModelUrl:
/en/models/1573803
Package:
Tape & Reel (TR)
Size / Dimension:
1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
standardLeadTime:
6 Weeks
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Features:
OCP, OTP, UVLO
Mounting Type:
Surface Mount
Series:
PTN78020A (25W)
Base Product Number:
PTN78020
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is PTN78020AAZT. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a -15 ~ -3.3v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 4a. Moreover, the product comes in 7-smd module. It offers 9v of minimum input voltage. It comes in non-isolated pol module configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. It is a highly efficient product with an 87% of high efficiency. Its maximum input voltage is 29v. It is shipped in tape & reel (tr) package . The product's diameters include 1.50" l x 0.87" w x 0.38" h (38.1mm x 22.1mm x 9.7mm). It has a long 6 weeks standard lead time. Its typical moisture sensitivity level is 3 (168 hours). The splendid features of the product include ocp, otp, uvlo. The product is available in surface mount configuration. The product ptn78020a (25w), is a highly preferred choice for users. Moreover, it corresponds to ptn78020, a base product number of the product. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PTN78020AAZT on website for other similar products.
We accept all major payment methods for all products including ET10702823. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with PTN78020AAZT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments PTN78020AAZT. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments PTN78020AAZT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10702823 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10702823.
Yes. We ship PTN78020AAZT Internationally to many countries around the world.
