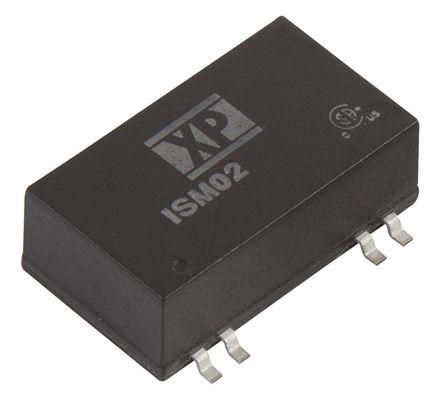

XP Power ISM0224S05

ISM0224S05 XP Power
XP Power

Product Information

Number of Outputs:
1
Load Regulation:
Maximum of 10%
Isolation Voltage:
4kV ac
Standards Met:
ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1, IEC60950-1, MIL-HDBK-217F, UL 94 V-0, UL/cUL 60950-1
Mounting Type:
Surface Mount
Package:
SMD
Maximum Temperature:
+105°C
Series:
ISM02
Input Voltage Range:
21.6 → 26.4 V dc
Length:
24mm
Railway Approved:
No
Width:
13.7mm
Depth:
8.75mm
Output Voltage:
5V dc
Medical Approved:
Yes
Minimum Temperature:
-25°C
Input Voltage Nominal:
24 V dc
Power Rating:
2W
Output Current:
400mA
HTSUS:
8504.40.9580
Number of Outputs:
1
Power (Watts):
2 W
Current - Output (Max):
400mA
Approval Agency:
CB, CE, UKCA, UL
Package / Case:
16-SMD Module, 6 Leads
Voltage - Input (Min):
21.6V
Type:
Isolated Module
Applications:
ITE (Commercial), Medical
Voltage - Output 4:
-
Voltage - Output 1:
5V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
66%
Voltage - Input (Max):
26.4V
Control Features:
-
Package:
Bulk
Size / Dimension:
0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
standardLeadTime:
35 Weeks
Voltage - Isolation:
4 kV
Moisture Sensitivity Level (MSL):
2 (1 Year)
Features:
SCP
Mounting Type:
Surface Mount
Series:
ISM02 (2W)
Operating Temperature:
-25°C ~ 105°C (With Derating)
Standard Number:
60601-1; 60950-1; 62368-1
Base Product Number:
ISM0224
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by XP Power. The manufacturer part number is ISM0224S05. Additionally, the product is supplied with 1 outputs. Load Regulation - maximum of 10%. It has 4kv ac isolation voltage. The product complies with all safety standards, such as ansi/aami es60601-1, en60601-1, iec60601-1, iec60950-1, mil-hdbk-217f, ul 94 v-0, ul/cul 60950-1. The product is available in surface mount configuration. It is shipped in smd package . The product has +105°c maximum temperature. The product ism02, is a highly preferred choice for users. It has 21.6 → 26.4 v dc of input voltage range. Its accurate length is 24mm. The product is railway approved no . Furthermore, the product is 13.7mm wide. The product comes in 8.75mm depth. Features a 5v dc output voltage. Medical Approval - yes. While its minimum temperature is -25°c. It has 24 v dc of nominal input voltage. Feature 2w of power rating. It carries 400ma output current. It is assigned with possible HTSUS value of 8504.40.9580. The product features power and watts of 2 w. The maximum product's output current is 400ma. It is approved by cb, ce, ukca, ul. Moreover, the product comes in 16-smd module, 6 leads. It offers 21.6v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial), medical. It has a 5v output voltage. It is a highly efficient product with an 66% of high efficiency. Its maximum input voltage is 26.4v. It is shipped in bulk package . The product's diameters include 0.94" l x 0.54" w x 0.36" h (24.0mm x 13.7mm x 9.3mm). It has a long 35 weeks standard lead time. 4 kv of isolation voltage. Its typical moisture sensitivity level is 2 (1 year). The splendid features of the product include scp. The product ism02 (2w), is a highly preferred choice for users. The product has -25°c ~ 105°c (with derating) operating temperature range. Standard number include: 60601-1; 60950-1; 62368-1. Moreover, it corresponds to ism0224, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
ISM02 Series Datasheet(Datasheets)
