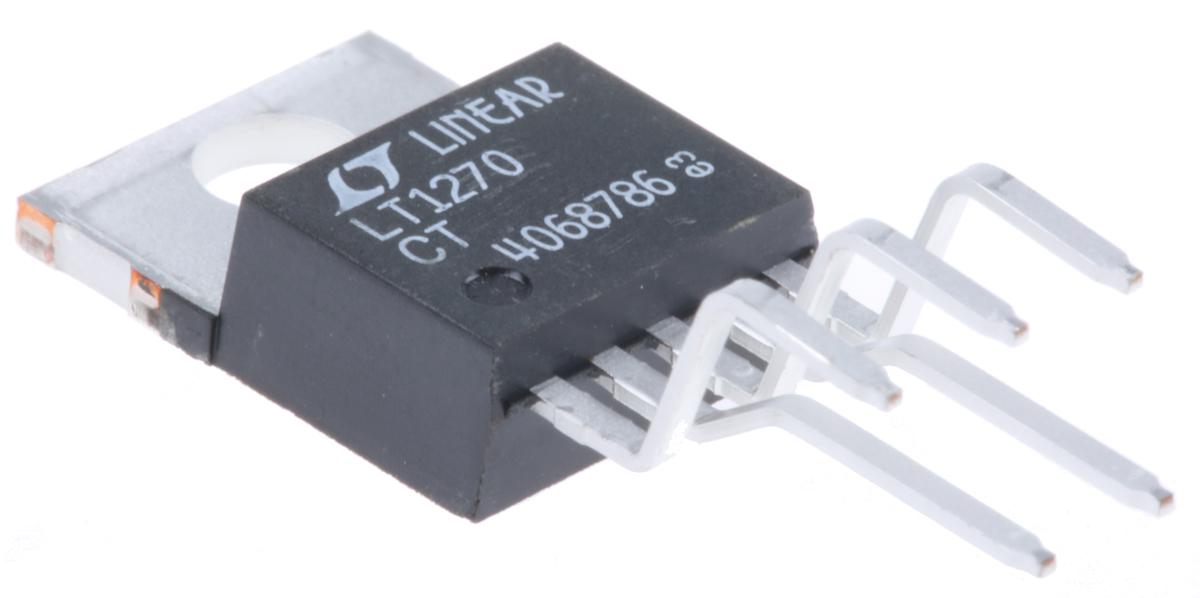

Linear Technology LT1270CT#PBF, 1-Channel, Flyback, Inverting, Step Down/Step Up DC-DC Converter, 8A 5-Pin, TO-220

LT1270CT-PBF Linear Technology LT1270CT#PBF, 1-Channel, Flyback, Inverting, Step Down/Step Up DC-DC Converter, 8A 5-Pin, TO-220
Analog Devices

Product Information

Number of Outputs:
1
Converter Type:
Flyback, Inverting, Step Down/Step Up
Dimensions:
10.541 x 4.572 x 9.398mm
Mounting Type:
Through Hole
Maximum Output Voltage:
60 V
Maximum Operating Temperature:
+125 °C
Minimum Output Current:
8A
Maximum Switching Frequency:
0.07 MHz
Output Type:
Fixed
Height:
9.398mm
Width:
4.572mm
Length:
10.54mm
Maximum Input Voltage:
30 V
Package Type:
TO-220
Switching Regulator:
Yes
Minimum Operating Temperature:
0 °C
Minimum Input Voltage:
3.5 V
Maximum Output Current:
16A
Pin Count:
5
Line Regulation:
0.03 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology 1-Channel Flyback Inverting Step Down/Step Up DC-DC Converter 8A 5-Pin TO-220 manufactured by Analog Devices. The manufacturer part number is LT1270CT#PBF. Additionally, the product is supplied with 1 outputs. It is designed with standard flyback, inverting, step down/step up type converter . The given dimensions of the product include 10.541 x 4.572 x 9.398mm. The product is available in through hole configuration. Its output voltage (maximum) includes 60 v. It has a maximum operating temperature of +125 °c. Additionally, it is offered with 8a minimum output current . It has a maximum 0.07 mhz switching frequency. Furthermore, it has afixed output. In addition, the height is 9.398mm. Furthermore, the product is 4.572mm wide. Its accurate length is 10.54mm. 30 v is the maximum voltage of the bespoke product. The package is a sort of to-220. It has a switching regulator yes . Whereas, the minimum operating temperature of the product is 0 °c. The product has 3.5 v of minimum input voltage. Featuring 16a of maximum output current. It contains 5 pins. Has a line regulation of 0.03 %/v.
