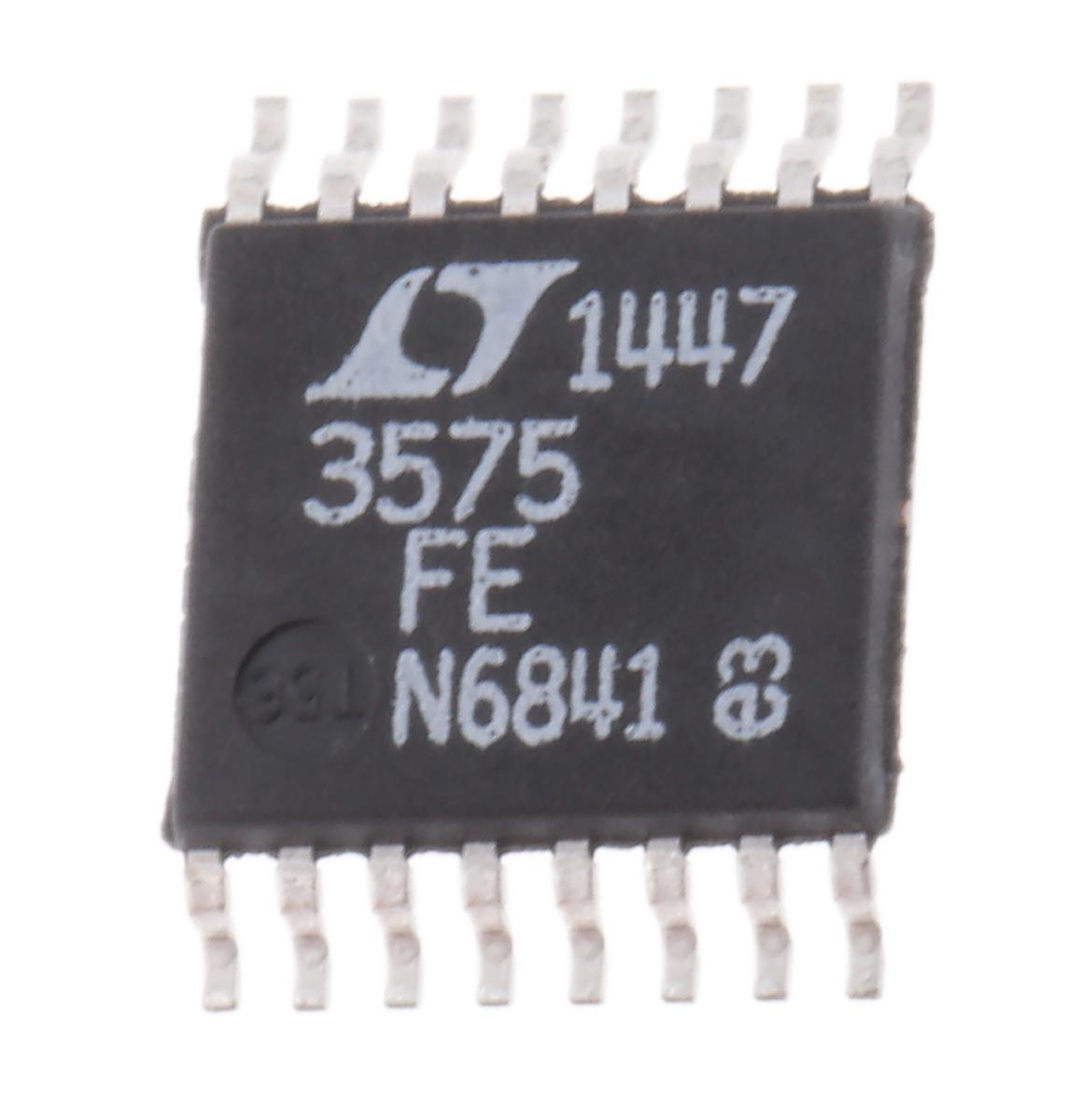

Linear Technology LT3575EFE#PBF, 1-Channel, Flyback DC-DC Converter 16-Pin, TSSOP

LT3575EFE-PBF Linear Technology LT3575EFE#PBF, 1-Channel, Flyback DC-DC Converter 16-Pin, TSSOP
Analog Devices

Product Information

Number of Outputs:
1
Converter Type:
Flyback
Dimensions:
5.1 x 2.74 x 0.95mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
1 MHz
Switching Regulator:
Yes
Height:
0.95mm
Width:
2.74mm
Length:
5.1mm
Maximum Input Voltage:
40 V
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
3 V
Maximum Output Current:
2.5A
Pin Count:
16
Line Regulation:
0.03 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology 1-Channel Flyback DC-DC Converter 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is LT3575EFE#PBF. Additionally, the product is supplied with 1 outputs. It is designed with standard flyback type converter . The given dimensions of the product include 5.1 x 2.74 x 0.95mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. It has a maximum 1 mhz switching frequency. It has a switching regulator yes . In addition, the height is 0.95mm. Furthermore, the product is 2.74mm wide. Its accurate length is 5.1mm. 40 v is the maximum voltage of the bespoke product. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. The product has 3 v of minimum input voltage. Featuring 2.5a of maximum output current. It contains 16 pins. Has a line regulation of 0.03 %/v.

pdf icon
LT3575, Isolated Flyback Converter without an Opto-Coupler(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LT3575EFE#PBF on website for other similar products.
We accept all major payment methods for all products including ET18372005. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with LT3575EFE#PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Linear Technology LT3575EFE#PBF, 1-Channel, Flyback DC-DC Converter 16-Pin, TSSOP. You can also check on our website or by contacting our customer support team for further order details on Linear Technology LT3575EFE#PBF, 1-Channel, Flyback DC-DC Converter 16-Pin, TSSOP.
