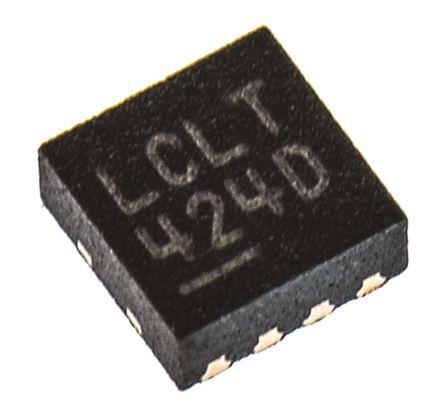

Linear Technology LT3502AIDC#TRMPBF, 1-Channel, Step Down DC-DC Converter 8-Pin, DFN

LT3502AIDC-TRMPBF Linear Technology LT3502AIDC#TRMPBF, 1-Channel, Step Down DC-DC Converter 8-Pin, DFN
Analog Devices

Product Information

Number of Outputs:
1
Converter Type:
Step Down
Dimensions:
2 x 2 x 0.75mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
3.3 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
2.8 MHz
Output Type:
Fixed
Height:
0.75mm
Width:
2mm
Length:
2mm
Maximum Input Voltage:
40 V
Package Type:
DFN
Switching Regulator:
Yes
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
3 V
Maximum Output Current:
500mA
Pin Count:
8
Line Regulation:
0.005 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology 1-Channel Step Down DC-DC Converter 8-Pin DFN manufactured by Analog Devices. The manufacturer part number is LT3502AIDC#TRMPBF. Additionally, the product is supplied with 1 outputs. It is designed with standard step down type converter . The given dimensions of the product include 2 x 2 x 0.75mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 3.3 v. It has a maximum operating temperature of +125 °c. It has a maximum 2.8 mhz switching frequency. Furthermore, it has afixed output. In addition, the height is 0.75mm. Furthermore, the product is 2mm wide. Its accurate length is 2mm. 40 v is the maximum voltage of the bespoke product. The package is a sort of dfn. It has a switching regulator yes . Whereas, the minimum operating temperature of the product is -40 °c. The product has 3 v of minimum input voltage. Featuring 500ma of maximum output current. It contains 8 pins. Has a line regulation of 0.005 %/v.
