DC-to-DC Converter Isolated SSOP20

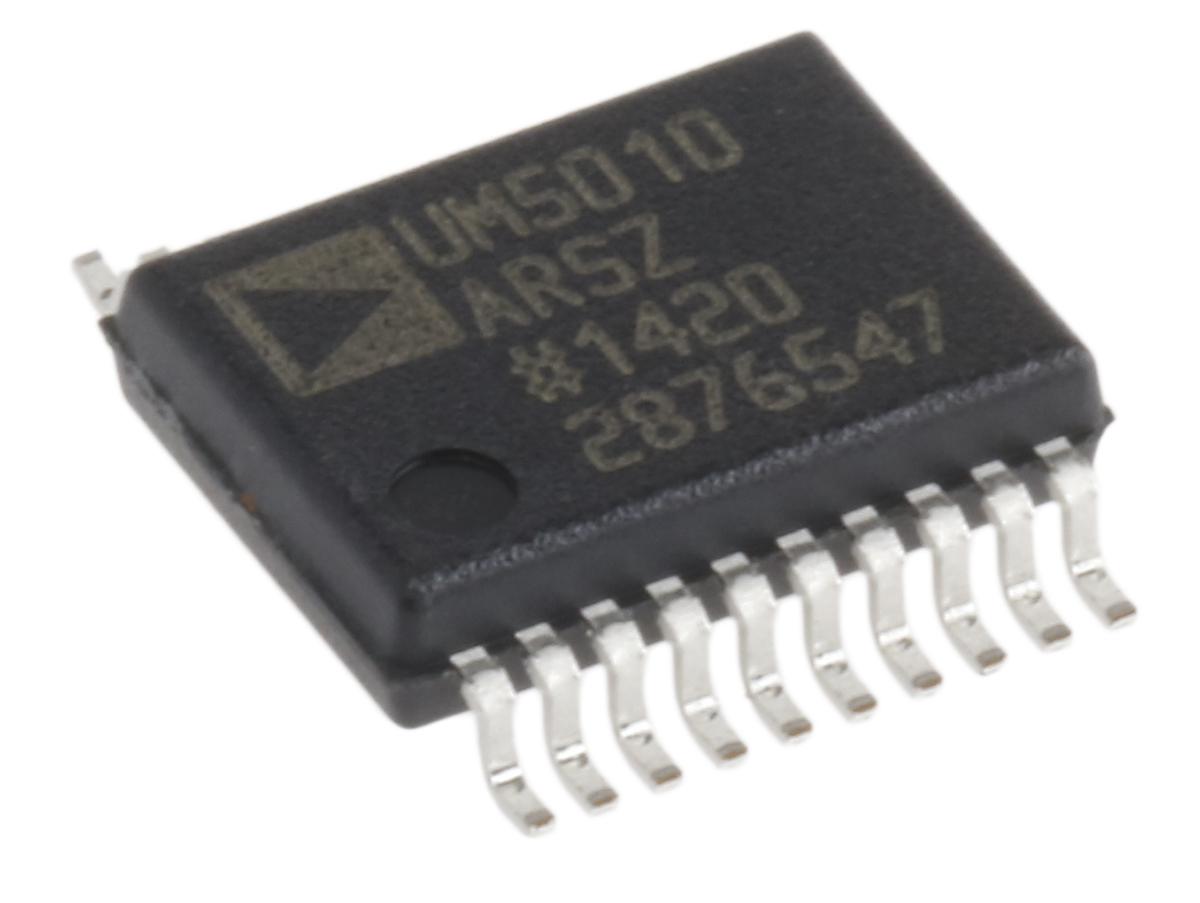

ADUM5010ARSZ DC-to-DC Converter Isolated SSOP20
ADUM5010ARSZ
Analog Devices

Product Information

Number of Outputs:
1
Converter Type:
Isolated
Load Regulation:
3 %
Dimensions:
7.5 x 5.6 x 1.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+105 °C
Maximum Switching Frequency:
125 MHz
Output Type:
Adjustable
Height:
1.85mm
Width:
5.6mm
Length:
7.5mm
Maximum Input Voltage:
3 V
Package Type:
SSOP
Maximum Output Voltage:
5.25 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
3.15 V
Minimum Input Voltage:
3 V
Maximum Output Current:
30mA
Pin Count:
20
Line Regulation:
20 mV/V
RoHs Compliant
Checking for live stock

This is DC-to-DC Converter Isolated SSOP20 manufactured by Analog Devices. The manufacturer part number is ADUM5010ARSZ. Additionally, the product is supplied with 1 outputs. It is designed with standard isolated type converter . Load Regulation - 3 %. The given dimensions of the product include 7.5 x 5.6 x 1.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of +105 °c. It has a maximum 125 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 1.85mm. Furthermore, the product is 5.6mm wide. Its accurate length is 7.5mm. 3 v is the maximum voltage of the bespoke product. The package is a sort of ssop. Its output voltage (maximum) includes 5.25 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 3.15 v minimum output voltage. The product has 3 v of minimum input voltage. Featuring 30ma of maximum output current. It contains 20 pins. Has a line regulation of 20 mv/v.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
ADuM5010, Integrated DC-to-DC Converter(Technical Reference)
