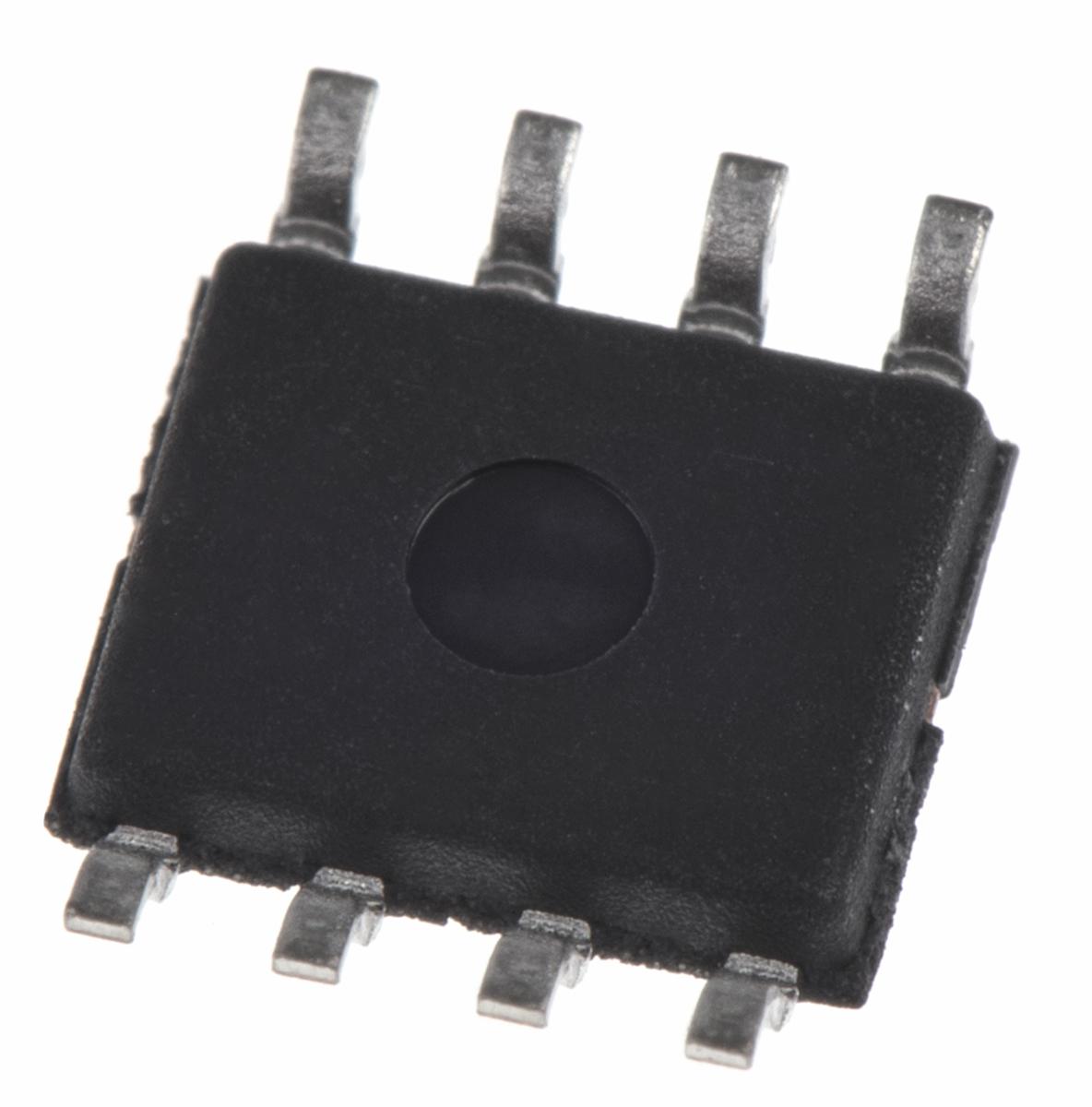

DiodesZetex AP34063S8G-13, Inverting, Step Down/Step Up DC-DC Converter, Adjustable, 1.25 to 40 V 8-Pin, SOP

AP34063S8G-13 DiodesZetex , Inverting, Step Down/Step Up DC-DC Converter, Adjustable, 1.25 to 40 V 8-Pin, SOP
AP34063S8G-13
DiodesZetex

Product Information

Dimensions:
4.95 x 3.95 x 1.5mm
Width:
3.95mm
Maximum Output Voltage:
40 V
Load Regulation:
±0.12 %
Output Type:
Adjustable
Maximum Switching Frequency:
0.1 MHz
Package Type:
SOP
Maximum Operating Temperature:
+105 °C
Number of Outputs:
1
Converter Type:
Inverting, Step Down/Step Up
Line Regulation:
±0.2 %
Length:
4.95mm
Minimum Output Voltage:
1.25 V
Pin Count:
8
Mounting Type:
Surface Mount
Height:
1.5mm
Minimum Operating Temperature:
0 °C
Minimum Input Voltage:
3 V
Maximum Output Current:
1.6A
Maximum Input Voltage:
40 V
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Inverting Step Down/Step Up DC-DC Converter Adjustable 1.25 to 40 V 8-Pin SOP manufactured by DiodesZetex. The manufacturer part number is AP34063S8G-13. The given dimensions of the product include 4.95 x 3.95 x 1.5mm. Furthermore, the product is 3.95mm wide. Its output voltage (maximum) includes 40 v. Load Regulation - ±0.12 %. Furthermore, it has aadjustable output. It has a maximum 0.1 mhz switching frequency. The package is a sort of sop. It has a maximum operating temperature of +105 °c. Additionally, the product is supplied with 1 outputs. It is designed with standard inverting, step down/step up type converter . Has a line regulation of ±0.2 %. Its accurate length is 4.95mm. The product features 1.25 v minimum output voltage. It contains 8 pins. The product is available in surface mount configuration. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is 0 °c. The product has 3 v of minimum input voltage. Featuring 1.6a of maximum output current. 40 v is the maximum voltage of the bespoke product. It has a switching regulator yes .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
