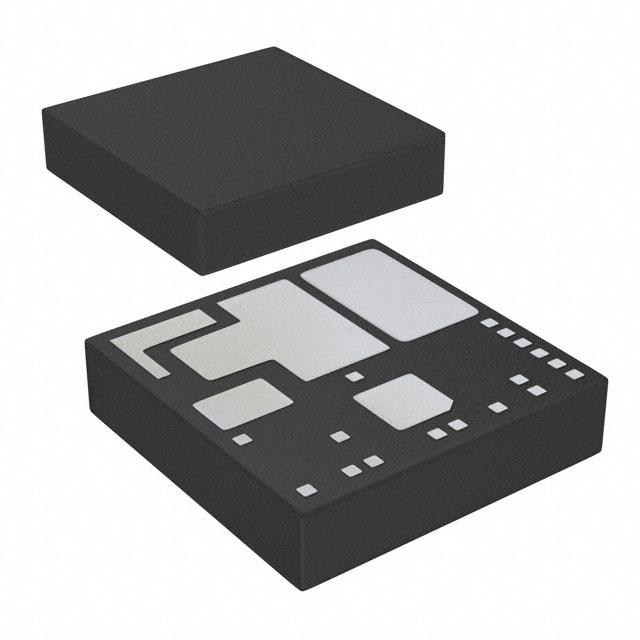

Intersil ISL8216MIRZ

ISL8216MIRZ Intersil
Intersil

Product Information

Dimensions:
15 x 15 x 3.67mm
Minimum Output Current:
0A
Width:
15mm
Maximum Output Voltage:
30 V
Load Regulation:
0.15 %
Output Type:
Adjustable
Maximum Switching Frequency:
600 kHz
Efficiency:
96%
Package Type:
HDA
Maximum Operating Temperature:
+85 °C
Number of Outputs:
1
Converter Type:
Step Down
Line Regulation:
0.005 %
Length:
15mm
Minimum Output Voltage:
2.5 V
Pin Count:
22
Mounting Type:
Surface Mount
Height:
3.67mm
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
10 V
Maximum Output Current:
4A
Maximum Input Voltage:
80 V
Switching Regulator:
Yes
Size / Dimension:
0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.5mm)
Base Part Number:
ISL8216
Detailed Description:
Non-Isolated PoL Module DC DC Converter 1 Output 10V 4A 10V - 80V Input
Features:
OCP, OTP, SCP
Mounting Type:
Surface Mount
Number of Outputs:
1
Series:
ISL8216M
Standard Package:
96
Voltage - Output 1:
10V
Manufacturer Standard Lead Time:
13 Weeks
Packaging:
Tray
Applications:
ITE (Commercial)
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
4A
Voltage - Input (Max):
80V
Package / Case:
22-HDA
Voltage - Input (Min):
10V
Type:
Non-Isolated PoL Module
Manufacturer:
Intersil
RoHs Compliant
Checking for live stock

This is manufactured by Intersil. The manufacturer part number is ISL8216MIRZ. The given dimensions of the product include 15 x 15 x 3.67mm. Additionally, it is offered with 0a minimum output current . Furthermore, the product is 15mm wide. Its output voltage (maximum) includes 30 v. Load Regulation - 0.15 %. Furthermore, it has aadjustable output. It has a maximum 600 khz switching frequency. It is a highly efficient product with an 96% of high efficiency. The package is a sort of hda. It has a maximum operating temperature of +85 °c. Additionally, the product is supplied with 1 outputs. It is designed with standard step down type converter . Has a line regulation of 0.005 %. Its accurate length is 15mm. The product features 2.5 v minimum output voltage. It contains 22 pins. The product is available in surface mount configuration. In addition, the height is 3.67mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has 10 v of minimum input voltage. Featuring 4a of maximum output current. 80 v is the maximum voltage of the bespoke product. It has a switching regulator yes . The product's diameters include 0.59" l x 0.59" w x 0.14" h (15.0mm x 15.0mm x 3.5mm). Base Part Number: isl8216. It features non-isolated pol module dc dc converter 1 output 10v 4a 10v - 80v input. The splendid features of the product include ocp, otp, scp. The product isl8216m, is a highly preferred choice for users. It is available in the standard package of 96. It has a 10v output voltage. It has typical 13 weeks of manufacturer standard lead time. In addition, tray is the available packaging type of the product. The product is widely employed in ite (commercial). The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 4a. Its maximum input voltage is 80v. Moreover, the product comes in 22-hda. It offers 10v of minimum input voltage. It comes in non-isolated pol module configuration. The intersil's product offers user-desired applications.

pdf icon
ISL8216M, Complete High Voltage 80V, 4A DC/DC Power Module(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
ISL8216M(Datasheets)
pdf icon
D4JL LED Switch Status Oct/2015(PCN Design/Specification)
