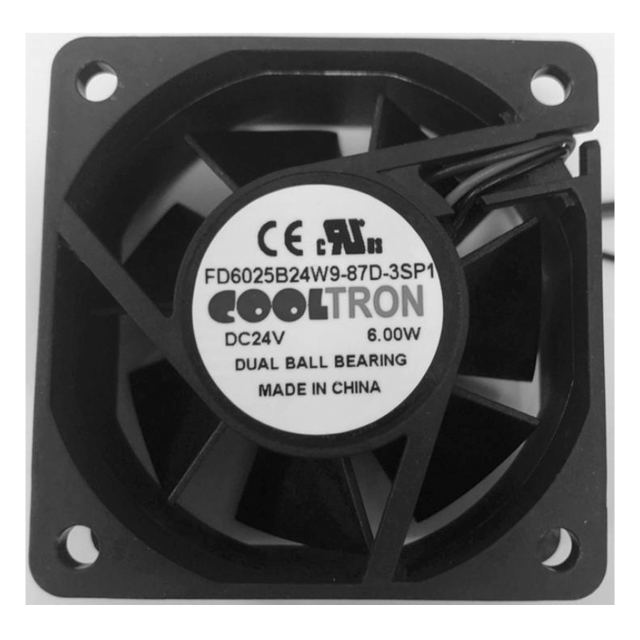

Cooltron Industrial Supply FD6025B24W9-87D-3SP1

FD6025B24W9-87D-3SP1 Cooltron Industrial Supply
Cooltron Industrial Supply

Product Information

Material - Blade:
Polybutylene Terephthalate (PBT)
HTSUS:
8414.59.6590
RoHS Status:
RoHS Compliant
Width:
25.00mm
Power (Watts):
6 W
Air Flow:
29.7 CFM (0.832m³/min)
Approval Agency:
CE, cUL, UL
Voltage Range:
12 ~ 26.4VDC
Noise:
38.3dB(A)
Voltage - Rated:
24VDC
title:
FD6025B24W9-87D-3SP1
REACH Status:
REACH Affected
Bearing Type:
Ball
Operating Temperature:
14 ~ 158°F (-10 ~ 70°C)
RPM:
6500 RPM
Lifetime @ Temp.:
70000 Hrs @ 40°C
Static Pressure:
0.341 in H2O (85.0 Pa)
Size / Dimension:
Square - 60mm L x 60mm H
Termination:
2 Wire Leads
Current Rating (Amps):
0.250A
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
Auto Restart, PWM Control
Weight:
0.133 lb (60.33 g)
Series:
51
Material - Frame:
Polybutylene Terephthalate (PBT)
Packaging:
Tape & Box (TB)
Fan Type:
Tubeaxial
ECCN:
EAR99
Checking for live stock

This is manufactured by Cooltron Industrial Supply. The manufacturer part number is FD6025B24W9-87D-3SP1. The blades are constructed from robust polybutylene terephthalate (pbt) materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs compliant. Furthermore, the product is 25.00mm wide. The product features power and watts of 6 w. It has a 29.7 cfm (0.832m³/min) air flow rate. It is approved by ce, cul, ul. While the voltage range is 12 ~ 26.4vdc. It has noise values of 38.3db(a). It also exhibits voltage rating of 24vdc. In addition, it is reach affected. This has integrated with a ball, a bearing with long-lasting features. The product has 14 ~ 158°f (-10 ~ 70°c) operating temperature range. It provides maximum rpm up to 6500 rpm. This product offers longer life span for 70000 hrs @ 40°c. The product has a 0.341 in h2o (85.0 pa) static pressure. The product's diameters include square - 60mm l x 60mm h. The product features 2 wire leads termination style. Additionally, the product's output is 0.250a. It is IP rated with ip68 - dust tight, waterproof. The splendid features of the product include auto restart, pwm control. The typical product's weight is 0.133 lb (60.33 g). The product 51, is a highly preferred choice for users. The frame of the product is made from highly durable polybutylene terephthalate (pbt) materials. In addition, tape & box (tb) is the available packaging type of the product. The latest designed fan is a type of tubeaxial offering unmatchable applications. The product is designated with the ear99 code number.

pdf icon
FD6025B24W9-87D-3SP1(Datasheets)
