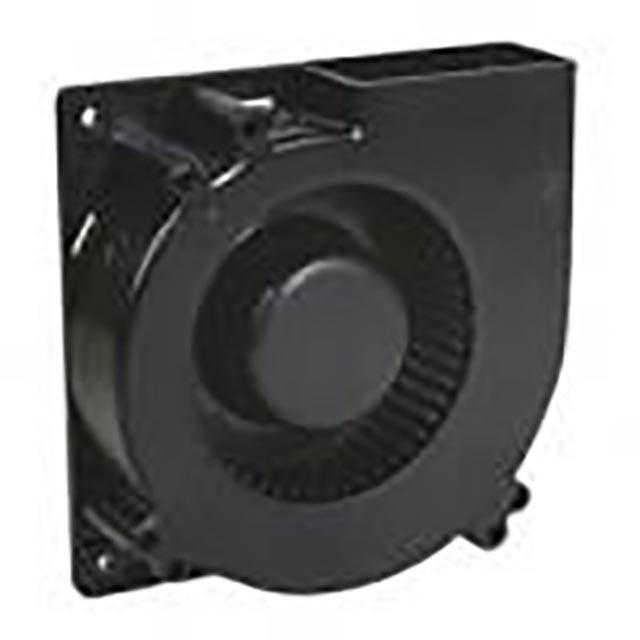

Orion Fans ODB1232-24HHB

ODB1232-24HHB Orion Fans
Orion Fans

Product Information

Material - Blade:
Polybutylene Terephthalate (PBT)
HTSUS:
8414.59.6590
RoHS Status:
ROHS3 Compliant
Width:
32.00mm
Power (Watts):
710 mW
Air Flow:
32.3 CFM (0.904m³/min)
Approval Agency:
CE, cURus, TUV, UR
Voltage Range:
14 ~ 26.4VDC
Noise:
59.7dB(A)
Voltage - Rated:
24VDC
title:
ODB1232-24HHB
REACH Status:
REACH Unaffected
Bearing Type:
Ball
Operating Temperature:
14 ~ 158°F (-10 ~ 70°C)
RPM:
3100 RPM
Lifetime @ Temp.:
70000 Hrs @ 40°C
Static Pressure:
1.400 in H2O (348.7 Pa)
Size / Dimension:
Square/Rounded - 120.5mm L x 120.5mm H
Termination:
2 Wire Leads
standardLeadTime:
2 Weeks
Current Rating (Amps):
17.00A
Moisture Sensitivity Level (MSL):
Not Applicable
Ingress Protection:
-
Features:
Auto Restart
Weight:
-
Series:
ODB1232
Material - Frame:
Polybutylene Terephthalate (PBT)
Packaging:
Bulk
Fan Type:
Blower
ECCN:
EAR99
Checking for live stock

This is manufactured by Orion Fans. The manufacturer part number is ODB1232-24HHB. The blades are constructed from robust polybutylene terephthalate (pbt) materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs3 compliant. Furthermore, the product is 32.00mm wide. The product features power and watts of 710 mw. It has a 32.3 cfm (0.904m³/min) air flow rate. It is approved by ce, curus, tuv, ur. While the voltage range is 14 ~ 26.4vdc. It has noise values of 59.7db(a). It also exhibits voltage rating of 24vdc. In addition, it is reach unaffected. This has integrated with a ball, a bearing with long-lasting features. The product has 14 ~ 158°f (-10 ~ 70°c) operating temperature range. It provides maximum rpm up to 3100 rpm. This product offers longer life span for 70000 hrs @ 40°c. The product has a 1.400 in h2o (348.7 pa) static pressure. The product's diameters include square/rounded - 120.5mm l x 120.5mm h. The product features 2 wire leads termination style. It has a long 2 weeks standard lead time. Additionally, the product's output is 17.00a. Its typical moisture sensitivity level is not applicable. The splendid features of the product include auto restart. The product odb1232, is a highly preferred choice for users. The frame of the product is made from highly durable polybutylene terephthalate (pbt) materials. In addition, bulk is the available packaging type of the product. The latest designed fan is a type of blower offering unmatchable applications. The product is designated with the ear99 code number.
