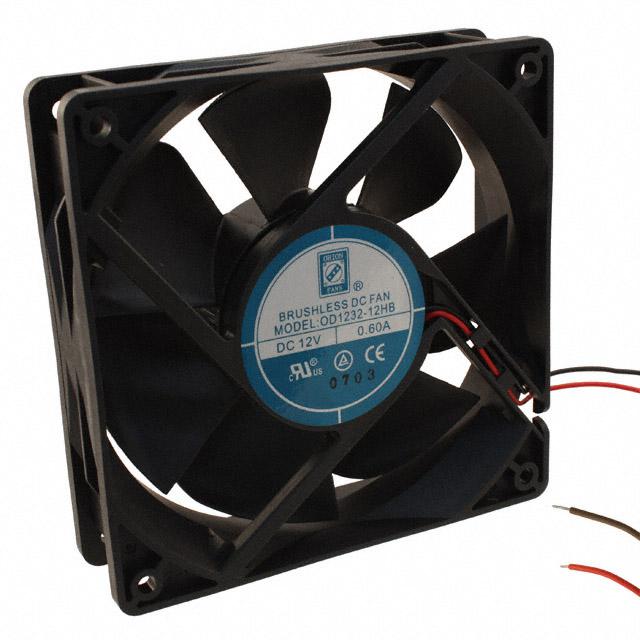

Orion Fans OD1232-12HB

OD1232-12HB Orion Fans
Orion Fans

Product Information

Material - Blade:
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
HTSUS:
8414.59.6590
RoHS Status:
ROHS3 Compliant
Width:
32.00mm
Operating Temperature:
-4 ~ 176°F (-20 ~ 80°C)
Air Flow:
120.0 CFM (3.36m³/min)
Approval Agency:
cURus, TUV
Voltage Range:
6 ~ 13.8VDC
Noise:
51.0dB
Voltage - Rated:
12VDC
REACH Status:
REACH Unaffected
Bearing Type:
Ball
edacadModel:
OD1232-12HB Models
edacadModelUrl:
/en/models/2621041
RPM:
3750 RPM
Lifetime @ Temp.:
60000 Hrs @ 40°C
Static Pressure:
0.420 in H2O (104.6 Pa)
Package:
Box
Size / Dimension:
Square - 120mm L x 120mm H
Termination:
2 Wire Leads
standardLeadTime:
19 Weeks
Current Rating (Amps):
0.600A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Ingress Protection:
-
Features:
-
Weight:
-
Series:
OD1232
Material - Frame:
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Fan Type:
Tubeaxial
Base Product Number:
OD1232
ECCN:
EAR99
Checking for live stock

This is manufactured by Orion Fans. The manufacturer part number is OD1232-12HB. The blades are constructed from robust polybutylene terephthalate (pbt), fiberglass reinforced materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs3 compliant. Furthermore, the product is 32.00mm wide. The product has -4 ~ 176°f (-20 ~ 80°c) operating temperature range. It has a 120.0 cfm (3.36m³/min) air flow rate. It is approved by curus, tuv. While the voltage range is 6 ~ 13.8vdc. It has noise values of 51.0db. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. This has integrated with a ball, a bearing with long-lasting features. It provides maximum rpm up to 3750 rpm. This product offers longer life span for 60000 hrs @ 40°c. The product has a 0.420 in h2o (104.6 pa) static pressure. It is shipped in box package . The product's diameters include square - 120mm l x 120mm h. The product features 2 wire leads termination style. It has a long 19 weeks standard lead time. Additionally, the product's output is 0.600a. Its typical moisture sensitivity level is 1 (unlimited). The product od1232, is a highly preferred choice for users. The frame of the product is made from highly durable polybutylene terephthalate (pbt), fiberglass reinforced materials. The latest designed fan is a type of tubeaxial offering unmatchable applications. Moreover, it corresponds to od1232, a base product number of the product. The product is designated with the ear99 code number.
