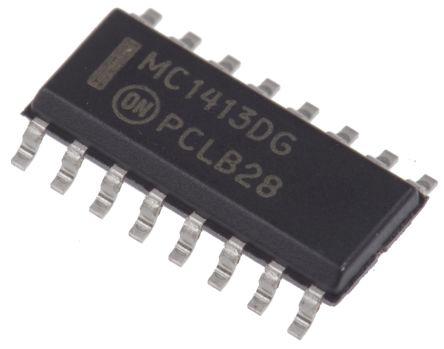

ON Semi MC1413DG, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC

MC1413DG ON Semi , 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC
ON Semiconductor

Product Information

Minimum DC Current Gain:
1000
Transistor Type:
NPN
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Emitter Base Voltage:
5 V
Maximum Continuous Collector Current:
500 mA
Maximum Collector Emitter Voltage:
50 V
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Number of Elements per Chip:
7
Minimum Operating Temperature:
-20 °C
Maximum Collector Emitter Saturation Voltage:
1.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Transistor Configuration:
Common Emitter
RoHs Compliant
Checking for live stock

This is ON Semi 7-element NPN Darlington Pair 500 mA 50 V HFE:1000 16-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC1413DG. It features up to 1000 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. It features a 5 v of maximum emitter base voltage. The product has a maximum 500 ma continuous collector current . Whereas features a 50 v of collector emitter voltage (max). In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. The package is a sort of soic. It consists of 7 elements per chip. Whereas, the minimum operating temperature of the product is -20 °c. The product has a maximum 1.6 v collector emitter saturation voltage . It has a maximum operating temperature of +85 °c. It contains 16 pins. The product offers common emitter transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MC1413DG on website for other similar products.
We accept all major payment methods for all products including ET16848281. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with MC1413DG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Darlington Pairs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semi MC1413DG, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on ON Semi MC1413DG, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16848281 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16848281.
Yes. We ship MC1413DG Internationally to many countries around the world.
