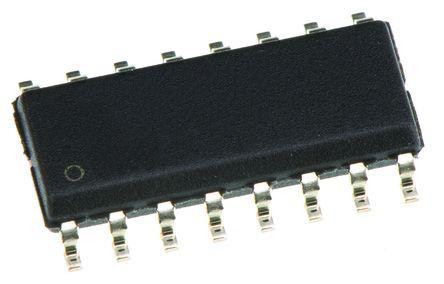

Diodes Inc ULN2004AS16-13 Dual NPN Darlington Pair, 500 mA 50 V, 16-Pin SOIC

ULN2004AS16-13 Diodes Inc Dual NPN Darlington Pair, 500 mA 50 V, 16-Pin SOIC
DiodesZetex

Product Information

Transistor Type:
NPN
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Continuous Collector Current:
500 mA
Maximum Collector Emitter Saturation Voltage:
1.6 V
Maximum Collector Emitter Voltage:
50 V
Maximum Collector Cut-off Current:
500µA
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+105 °C
Pin Count:
16
Transistor Configuration:
Common Emitter
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual NPN Darlington Pair 500 mA 50 V 16-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is ULN2004AS16-13. The transistor is a npn type. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. The product has a maximum 500 ma continuous collector current . The product has a maximum 1.6 v collector emitter saturation voltage . Whereas features a 50 v of collector emitter voltage (max). It has a maximum 500µa collector cut-off current . In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. The package is a sort of soic. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +105 °c. It contains 16 pins. The product offers common emitter transistor configuration.

pdf icon
ULN2002A/ ULN2003A/ ULN2004A, High Voltage, High Current Darlington Transistor Arrays(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
