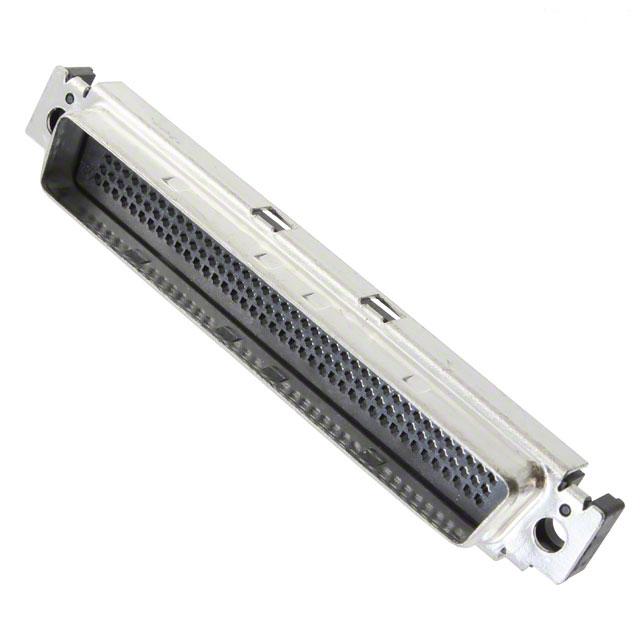

Molex 0716243000

0716243000 Molex
Molex

Product Information

Shell Size, Connector Layout:
0.075 Pitch x 0.075 Row to Row
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-20°C ~ 80°C
Connector Style:
D-Type
Dielectric Material:
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions:
160
Shell Finish Thickness:
150µin (3.81µm)
edacadModel:
0716243000 Models
Number of Rows:
4
edacadModelUrl:
/en/models/2405262
Package:
Tray
Connector Type:
Plug for Male Matrix Strip
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal
Mating Cycles:
-
Ingress Protection:
-
Features:
Grounding Indents, Shielded
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
Low Force Helix (LFH) 71624
Shell Material, Finish:
Steel, Tin Plated
Base Product Number:
071624
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0716243000. 0.075 pitch x 0.075 row to row is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -20°c ~ 80°c operating temperature range. It comes in d-type connector style. Moreover, the product is constructed from highly liquid crystal polymer (lcp), glass filled dielectric material. The product carries possible position value of 160. The product is well-finished with a 150µin (3.81µm) thickness. It comes in 4 of rows. It is shipped in tray package . plug for male matrix strip Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal. The splendid features of the product include grounding indents, shielded. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product low force helix (lfh) 71624, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. Moreover, it corresponds to 071624, a base product number of the product. The product is designated with the ear99 code number.
