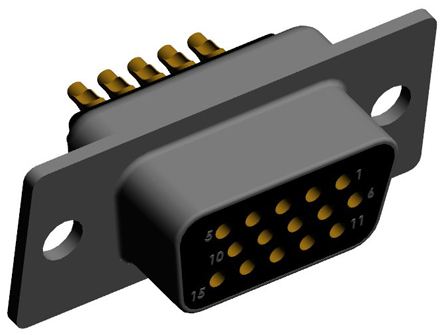

Norcomp 780, SEAL-D Series Plug-In Mount Solder D-sub Connector Socket, 15 Way, 1 kV ac, 5A

780-M15-203L001 Norcomp 780, SEAL-D Series Plug-In Mount Solder D-sub Connector Socket, 15 Way, 1 kV ac, 5A
Norcomp

Product Information

Series:
780, SEAL-D
Current Rating:
5.0A
Dimensions:
30.81 x 10.9 x 10.72mm
Mounting Type:
Plug-In Mount
Voltage Rating:
1.0 kV
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Length:
30.81mm
D Connector Type:
High Density D-Sub
Housing Material:
Steel
Width:
10.9mm
Depth:
10.72mm
Contact Plating:
Gold
Pitch:
2.286mm
Number of Contacts:
15
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Brass
RoHs Compliant
Checking for live stock

This is 780 SEAL-D Series Plug-In Mount Solder D-sub Connector Socket 15 Way 1 kV ac 5A manufactured by Norcomp. The manufacturer part number is 780-M15-203L001. The product 780, seal-d, is a highly preferred choice for users. The product has a current rating of 5.0a. The given dimensions of the product include 30.81 x 10.9 x 10.72mm. The product is available in plug-in mount configuration. Moreover, the product has a nominal 1.0 kv voltage rating. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 30.81mm. Additionally, it has a high density d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 10.9mm wide. The product comes in 10.72mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.286mm. The product contains 15 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy brass materials.
