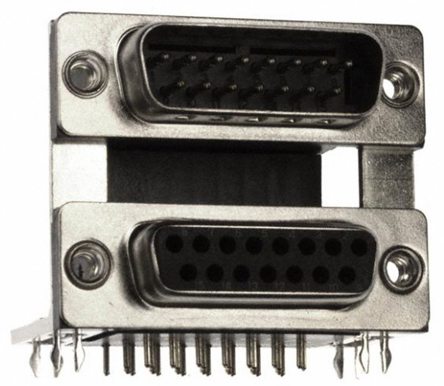

Norcomp 189 Series, 15 Way Right Angle Stacked PCB D-Sub Connector Male/Female, 2.769mm Pitch

189-015-413R571 Norcomp 189 Series, 15 Way Right Angle Stacked PCB D-Sub Connector Male/Female, 2.769mm Pitch
Norcomp

Product Information

Series:
189
Current Rating:
5.0A
Dimensions:
38.99 x 25.4 x 29.21mm
Mounting Type:
Through Hole
Voltage Rating:
1.0 kV
Gender:
Male/Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
38.99mm
D Connector Type:
Dual Ports D-Sub
Housing Material:
Steel
Width:
25.4mm
Depth:
29.21mm
Contact Plating:
Gold
Pitch:
2.769mm
Mounting Hardware:
4-40 Hex Standoff, Fork Boardlocks
Number of Contacts:
15
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Brass
RoHs Compliant
Checking for live stock

This is 189 Series 15 Way Right Angle Stacked PCB D-Sub Connector Male/Female 2.769mm Pitch manufactured by Norcomp. The manufacturer part number is 189-015-413R571. The product 189, is a highly preferred choice for users. The product has a current rating of 5.0a. The given dimensions of the product include 38.99 x 25.4 x 29.21mm. The product is available in through hole configuration. Moreover, the product has a nominal 1.0 kv voltage rating. In addition, male/female is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. Its accurate length is 38.99mm. Additionally, it has a dual ports d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 25.4mm wide. The product comes in 29.21mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.769mm. It has 4-40 hex standoff, fork boardlocks hardware mounting . The product contains 15 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy brass materials.
