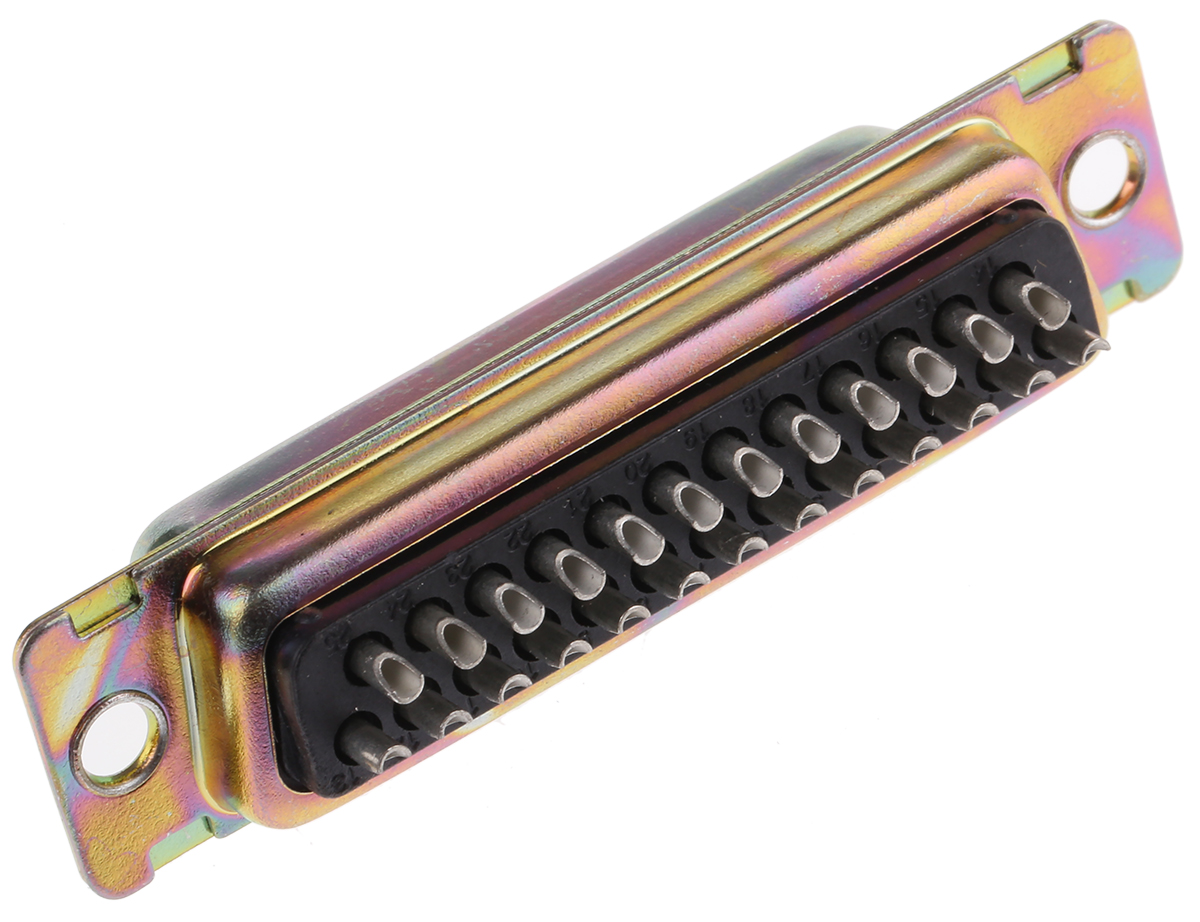

ITT Cannon D*M Series Panel Mount Solder D-sub Connector Socket, 25 Way, 7.5A

053513-0023 ITT Cannon D*M Series Panel Mount Solder D-sub Connector Socket, 25 Way, 7.5A
053513-0023
ITT Cannon

Product Information

Current Rating:
7.5A
Dimensions:
66.93 x 12.55 x 16.85mm
Mounting Type:
Panel Mount
Termination Method:
Solder
Gender:
Female
Body Orientation:
Straight
Pitch:
2.8mm
Length:
66.93mm
D Connector Type:
Standard D-Sub
Housing Material:
Steel
Width:
12.55mm
Depth:
16.85mm
D-Sub Shell Size:
B
Contact Plating:
Gold over Nickel
Series:
D*M
Number of Contacts:
25
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-55°C
Contact Material:
Copper Alloy
Checking for live stock

This is D*M Series Panel Mount Solder D-sub Connector Socket 25 Way 7.5A manufactured by ITT Cannon. The manufacturer part number is 053513-0023. The product has a current rating of 7.5a. The given dimensions of the product include 66.93 x 12.55 x 16.85mm. The product is available in panel mount configuration. It allows solder termination method. In addition, female is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 2.8mm. Its accurate length is 66.93mm. Additionally, it has a standard d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 12.55mm wide. The product comes in 16.85mm depth. Additionally, its D-sub shell is of b size . The high-quality gold over nickel is used as contact plating material. The product d*m, is a highly preferred choice for users. The product contains 25 contacts. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -55°c. The product is made from sturdy copper alloy materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
D*M Series Connector Data(Technical Reference)
