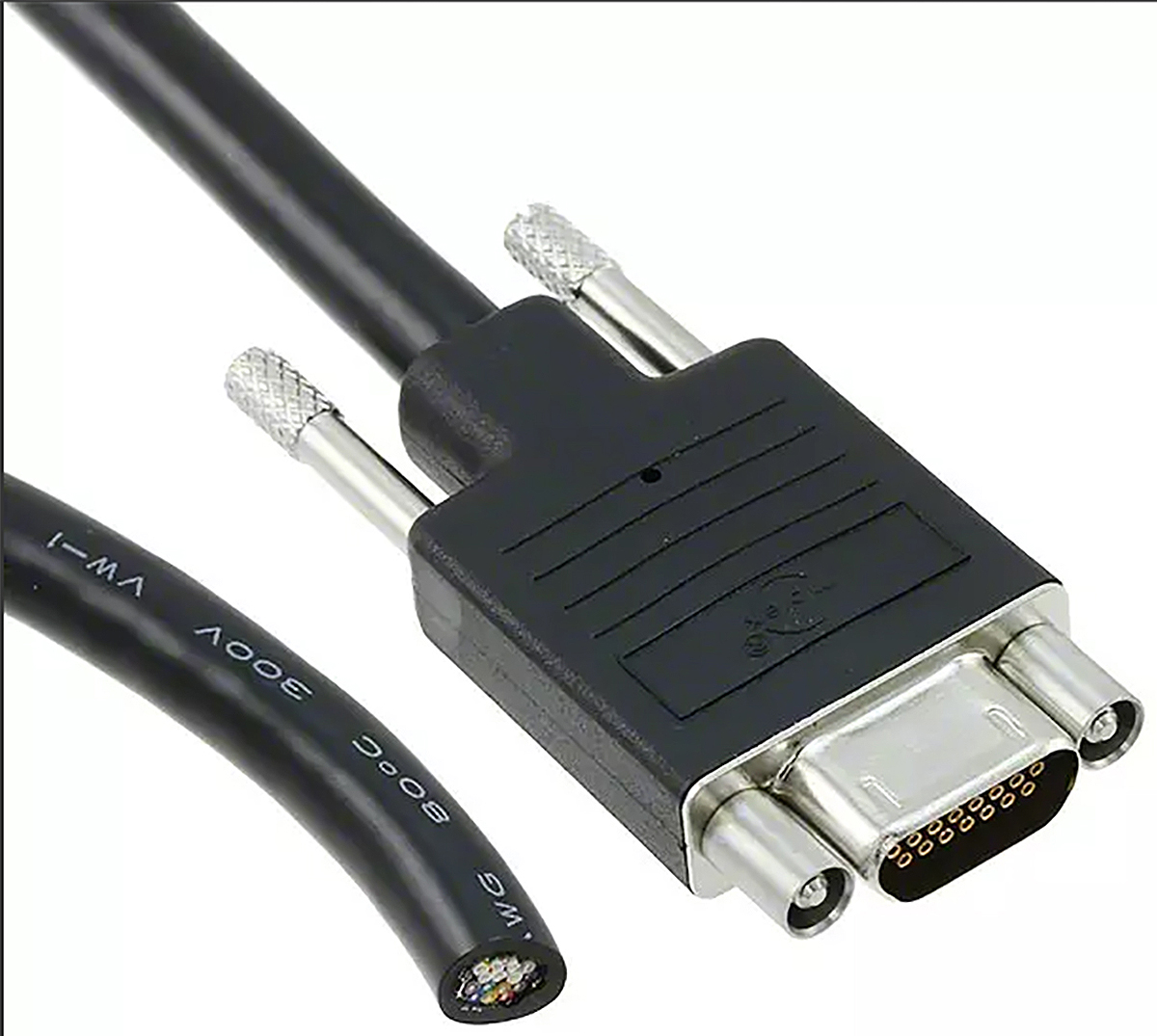

Molex CMD Series 1.27mm Pitch 15 Way Straight Micro-D Connector, Socket, Liquid Crystal Polymer Shell, 1.83m Lead

Enrgtech Part No: ET16778580
|
Manufacturer Part No:
834229018
|
Manufacturer: Molex

834229018 Molex CMD Series 1.27mm Pitch 15 Way Straight Micro-D Connector, Socket, Liquid Crystal Polymer Shell, 1.83m Lead

Product Information

Series:

CMD

Current Rating:

Dimensions:

23.75 x 42.78 x 8.38mm

Voltage Rating:

600.0 V

Gender:

Female

Body Orientation:

Straight

Termination Method:

Pre-Wired

Length:

23.75mm

Housing Material:

Liquid Crystal Polymer

Width:

42.78mm

Depth:

8.38mm

Contact Size:

Checking for live stock

This is CMD Series 1.27mm Pitch 15 Way Straight Micro-D Connector Socket Liquid Crystal Polymer Shell 1.83m Lead manufactured by Molex. The manufacturer part number is 834229018. The product cmd, is a highly preferred choice for users. The product has a current rating of 1a. The given dimensions of the product include 23.75 x 42.78 x 8.38mm. Moreover, the product has a nominal 600.0 v voltage rating. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows pre-wired termination method. Its accurate length is 23.75mm. The product also features robust liquid crystal polymer housing material. Furthermore, the product is 42.78mm wide. The product comes in 8.38mm depth. While it has a 15 of contact size. The high-quality tin is used as contact plating material. Moreover, the product is 1.27mm. The product contains 15 contacts. It has a maximum operating temperature of +80°c. Whereas, the minimum operating temperature of the product is -40.0°c. The product is made from sturdy copper alloy materials.

15 way micro d-sub cable assembly drawing(Technical Reference)

15 way micro d-sub cable assembly specifications(Technical Reference)

15 way micro d-sub cable assembly features and benefits(Technical Reference)
