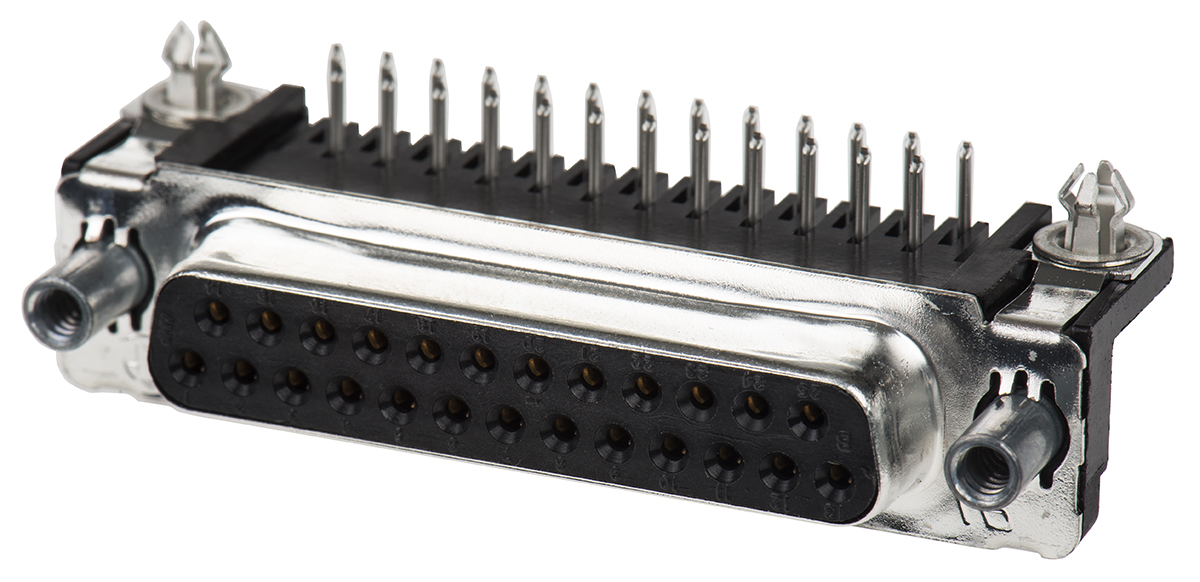

TE Connectivity AMPLIMITE HD-20 Series, 25 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch

5747846-6 TE Connectivity AMPLIMITE HD-20 Series, 25 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch
5747846-6
TE Connectivity

Product Information

Series:
Amplimite HD-20
Dimensions:
53.03 x 12.54 x 18.79mm
Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
53.03mm
Housing Material:
Thermoplastic
Width:
12.54mm
Depth:
18.79mm
Contact Plating:
Gold over Nickel
Pitch:
2.75mm
Mounting Hardware:
4-40 UNC Female Screwlocks, Boardlocks
Number of Contacts:
25
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is AMPLIMITE HD-20 Series 25 Way Right Angle Through Hole PCB D-sub Connector Socket 2.75mm Pitch manufactured by TE Connectivity. The manufacturer part number is 5747846-6. The product amplimite hd-20, is a highly preferred choice for users. The given dimensions of the product include 53.03 x 12.54 x 18.79mm. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. Its accurate length is 53.03mm. The product also features robust thermoplastic housing material. Furthermore, the product is 12.54mm wide. The product comes in 18.79mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.75mm. It has 4-40 unc female screwlocks, boardlocks hardware mounting . The product contains 25 contacts. The product is made from sturdy phosphor bronze materials.

pdf icon
747846 Customer Drawing(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search 5747846-6 on website for other similar products.
We accept all major payment methods for all products including ET13971565. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 5747846-6 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D Sub Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMPLIMITE HD-20 Series, 25 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMPLIMITE HD-20 Series, 25 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13971565 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13971565.
Yes. We ship 5747846-6 Internationally to many countries around the world.
