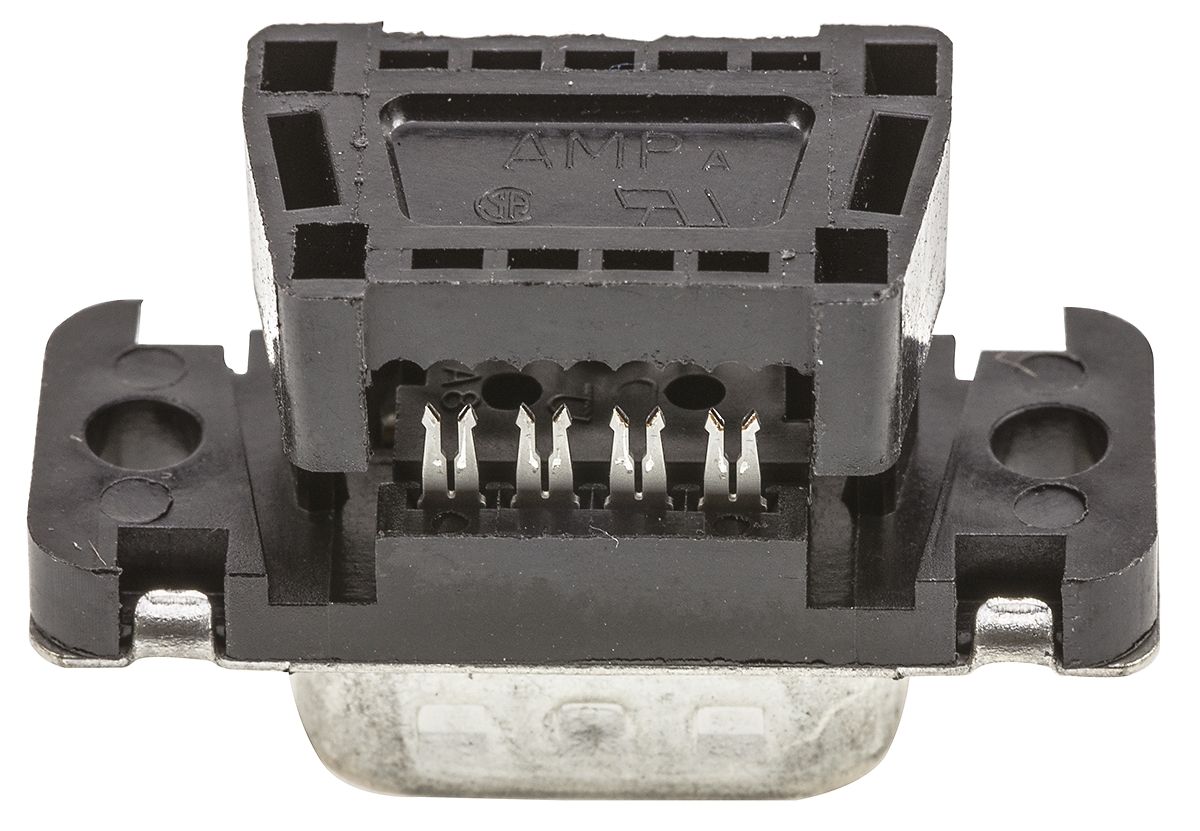

TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell

1658613-4 TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell
1658613-4
1658613-4
TE Connectivity

Product Information

Series:
Amplimite HDF-20
Current Rating:
1.25A
Dimensions:
30.88 x 18.57 x 12.59mm
Mounting Type:
Cable Mount
Voltage Rating:
30.0 V
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
IDC
Length:
30.88mm
Housing Material:
Steel
Width:
18.57mm
Depth:
12.59mm
Contact Plating:
Gold over Nickel
Pitch:
2.76mm
Number of Contacts:
9
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector Plug Steel Shell manufactured by TE Connectivity. The manufacturer part number is 1658613-4. The product amplimite hdf-20, is a highly preferred choice for users. The product has a current rating of 1.25a. The given dimensions of the product include 30.88 x 18.57 x 12.59mm. The product is available in cable mount configuration. Moreover, the product has a nominal 30.0 v voltage rating. In addition, male is the available "Gender" of the product. It has right angle body orientation. It allows idc termination method. Its accurate length is 30.88mm. The product also features robust steel housing material. Furthermore, the product is 18.57mm wide. The product comes in 12.59mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.76mm. The product contains 9 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy phosphor bronze materials.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

Cheer on your favorite e-commerce corporation Enrgtech is here, offering high-quality TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell. Each component is made of 100% best quality materials D Sub Connectors, it makes you feel comfortable and make purchases about TE Connectivity. Our branded TE Connectivity is recognized globally, our server filled up with huge voluminous orders about TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell daily. You will notice the D Sub Connectors are efficient, durable, and secure. A typical form of the electrical connector such as TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell is the D-subminiature.

They get their name from the D-shaped metal shield they wear D Sub Connectors. D-subs were among the tiniest connections including TE Connectivity AMPLIMITE HDF-20 Series 2.76mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Plug, Steel Shell used on computer systems when they were first introduced. If you have got any queries or concerns regarding our D Sub Connectors, feel free to give us a call at +44 (0) 3303 800 157 or drop an email at sales@enrgtech.co.uk. We would be happy to help.
