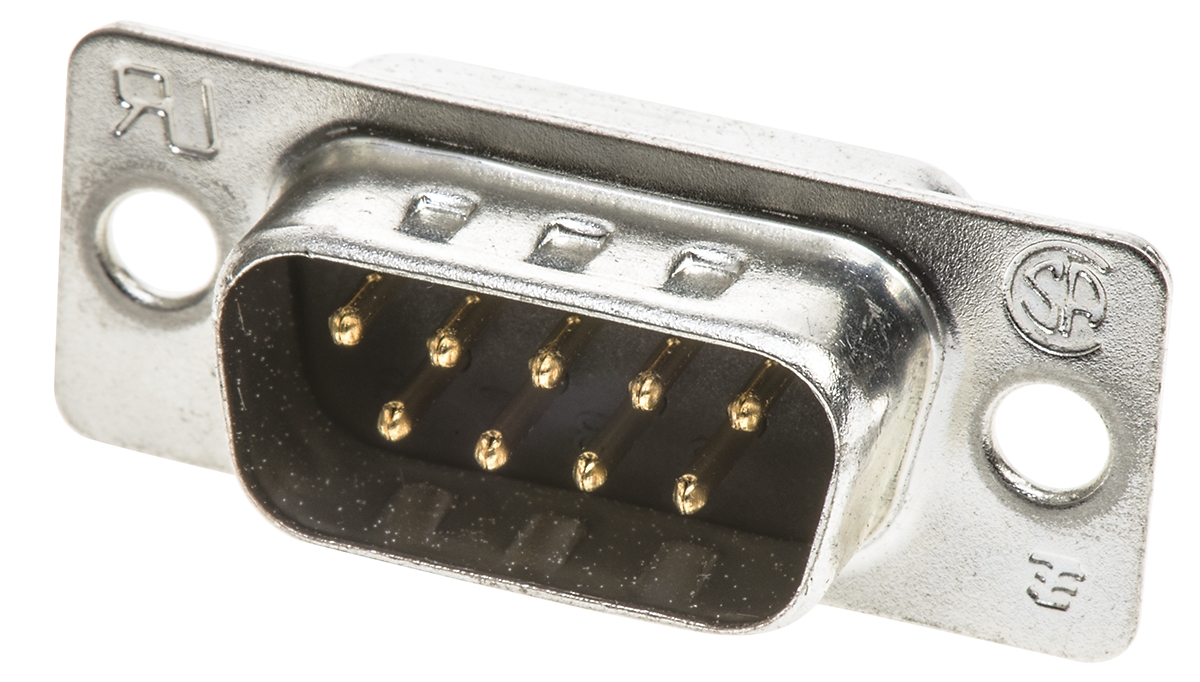

TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A

5-747904-2 TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A
5-747904-2
5-747904-2
TE Connectivity

Product Information

Current Rating:
3A
Dimensions:
30.8 x 12.5 x 15.4mm
Housing Material:
Steel
Width:
12.5mm
D-Sub Shell Size:
E
Contact Plating:
Gold over Nickel
Termination Method:
Solder
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Voltage Rating:
250.0 V
Gender:
Male
Body Orientation:
Straight
Length:
30.8mm
Mounting Type:
Panel Mount
Series:
Amplimite HD-20
Depth:
15.4mm
D Connector Type:
Standard D-Sub
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=99943&DisplayLogo=False
Pitch:
2.77mm
Number of Contacts:
9
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug 9 Way 250 V ac 3A manufactured by TE Connectivity. The manufacturer part number is 5-747904-2. The product has a current rating of 3a. The given dimensions of the product include 30.8 x 12.5 x 15.4mm. The product also features robust steel housing material. Furthermore, the product is 12.5mm wide. Additionally, its D-sub shell is of e size . The high-quality gold over nickel is used as contact plating material. It allows solder termination method. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. Moreover, the product has a nominal 250.0 v voltage rating. In addition, male is the available "Gender" of the product. It has straight body orientation. Its accurate length is 30.8mm. The product is available in panel mount configuration. The product amplimite hd-20, is a highly preferred choice for users. The product comes in 15.4mm depth. Additionally, it has a standard d-sub type connector D . Moreover, the product is 2.77mm. The product contains 9 contacts. The product is made from sturdy phosphor bronze materials.

pdf icon
Instruction sheet(Technical Reference)
pdf icon
747904 Customer Drawing(Technical Reference)

Reviews

  • Be the first to review.

Cheer on your favorite e-commerce corporation Enrgtech is here, offering high-quality TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A. Each component is made of 100% best quality materials D Sub Connectors, it makes you feel comfortable and make purchases about TE Connectivity. Our branded TE Connectivity is recognized globally, our server filled up with huge voluminous orders about TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A daily. You will notice the D Sub Connectors are efficient, durable, and secure. A typical form of the electrical connector such as TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A is the D-subminiature.

They get their name from the D-shaped metal shield they wear D Sub Connectors. D-subs were among the tiniest connections including TE Connectivity AMPLIMITE HD-20 Series Panel Mount Solder D-sub Connector Plug, 9 Way, 250 V ac, 3A used on computer systems when they were first introduced. If you have got any queries or concerns regarding our D Sub Connectors, feel free to give us a call at +44 (0) 3303 800 157 or drop an email at sales@enrgtech.co.uk. We would be happy to help.
