Current Rating:
5.0A
Dimensions:
39.14 x 12.58 x 18.5mm
Mounting Type:
Plug-In Mount
Voltage Rating:
300.0 V
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
39.14mm
D Connector Type:
Standard D-Sub
Housing Material:
PBT
Width:
12.58mm
Depth:
18.5mm
Mixed Contact Layout:
15W2
Contact Plating:
Gold over Nickel
Pitch:
2.74mm
Mounting Hardware:
Screw
Number of Contacts:
15
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Brass
Shell Size, Connector Layout:
2 (DA, A)
Manufacturer Standard Lead Time:
17 Weeks
Detailed Description:

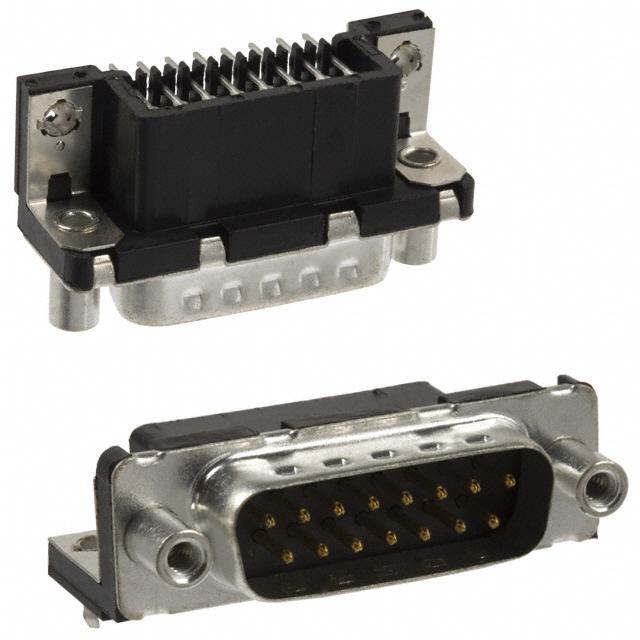

15 Position D-Sub Plug, Male Pins Connector
Flange Feature:
Mating Side, Female Screwlock (4-40)
Current Rating:
5A
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
Flash
Number of Positions:
15
Number of Rows:
2
Standard Package:
25
Manufacturer:
Amphenol FCI
Voltage Rating:
300V
Material Flammability Rating:
UL94 V-0
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Backset Spacing:
0.318" (8.08mm)
Features:
Board Lock, Grounding Indents, Mounting Brackets
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
Delta D
Shell Material, Finish:
Steel, Tin Plated
Packaging:
Tray
Contact Type:
Signal
Other Names:
609-1492
Contact Material:
Brass
