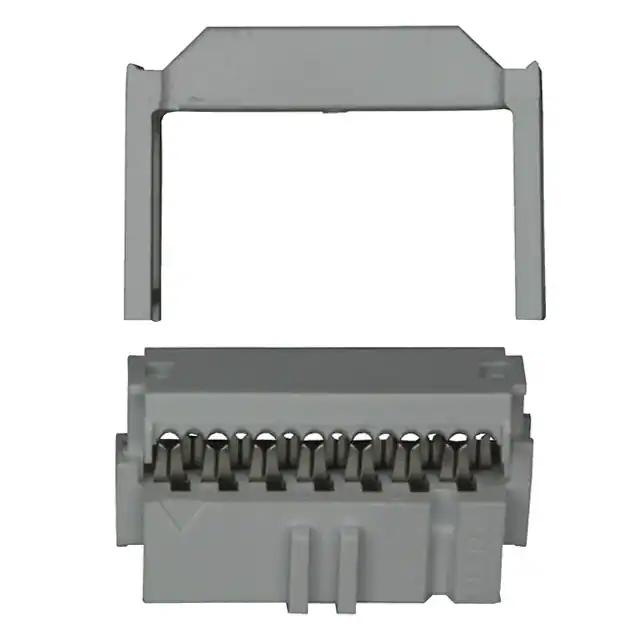

Amphenol FCI 71600-014LF

71600-014LF Amphenol FCI
71600-014LF
71600-014LF
Amphenol FCI

Product Information

Current Rating:
1A
Minimum Operating Temperature:
-65.0°C
Mounting Type:
Cable Mount
Voltage Rating:
1.0 kV ac
Gender:
Female
Body Orientation:
Right Angle
Pitch:
2.54mm
Termination Method:
IDC
Housing Material:
Glass Fibre Reinforced Thermoplastic
Contact Plating:
Gold over Nickel
Series:
Quickie
Number of Contacts:
14
Maximum Operating Temperature:
105.0°C
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
5 Weeks
Detailed Description:
14 Position Rectangular Receptacle Connector IDC Gold 28-30 AWG
Wire Type:
Ribbon Cable
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
14
Wire Gauge:
28-30 AWG
Number of Rows:
2
Standard Package:
26
Manufacturer:
Amphenol FCI
Cable Termination:
IDC
Connector Type:
Receptacle
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Feed Through, Polarizing Key, Strain Relief
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
Quickie™
Packaging:
Tube
Pitch:
0.100" (2.54mm)
Contact Type:
Female Socket
Row Spacing:
0.100" (2.54mm)
Other Names:
609-3562 71600-014LF-ND 71600014LF
RoHs Compliant
Checking for live stock

This is manufactured by Amphenol FCI. The manufacturer part number is 71600-014LF. The product has a current rating of 1a. Whereas, the minimum operating temperature of the product is -65.0°c. The product is available in cable mount configuration. Moreover, the product has a nominal 1.0 kv ac voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 2.54mm. It allows idc termination method. The product also features robust glass fibre reinforced thermoplastic housing material. The high-quality gold over nickel is used as contact plating material. The product quickie, is a highly preferred choice for users. The product contains 14 contacts. It has a maximum operating temperature of 105.0°c. The product is made from sturdy phosphor bronze materials. It has typical 5 weeks of manufacturer standard lead time. It features 14 position rectangular receptacle connector idc gold 28-30 awg. The given wire is a sort of ribbon cable wire. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 14. Moreover, the product has a wire gauge of 28-30 awg. It comes in 2 of rows. It is available in the standard package of 26. The amphenol fci's product offers user-desired applications. It features idc cable terminals. receptacle Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include feed through, polarizing key, strain relief. The product is available in free hanging (in-line) configuration. It has a classic gray colour. The product quickie™, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. Moreover, the product is 0.100" (2.54mm). It has typical contact type of female socket. The space between it rows includes 0.100" (2.54mm). Alternative Names include 609-3562 71600-014lf-nd 71600014lf.
