Series:
Delta D
Current Rating:
5A
Dimensions:
39.14 x 12.17 x 12.55mm
Mounting Type:
Through Hole
Voltage Rating:
300 V ac
Gender:
Female
Body Orientation:
Straight
Minimum Operating Temperature:
-55°C
Length:
39.14mm
Housing Material:
PBT
Width:
12.17mm
Depth:
12.55mm
Contact Plating:
Gold over Nickel
Pitch:
2.74mm
Number of Contacts:
15
Maximum Operating Temperature:
+125°C
CAD Drawing:
3D CAD Model
Contact Material:
Phosphor Bronze
Shell Size, Connector Layout:
2 (DA, A)
Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:

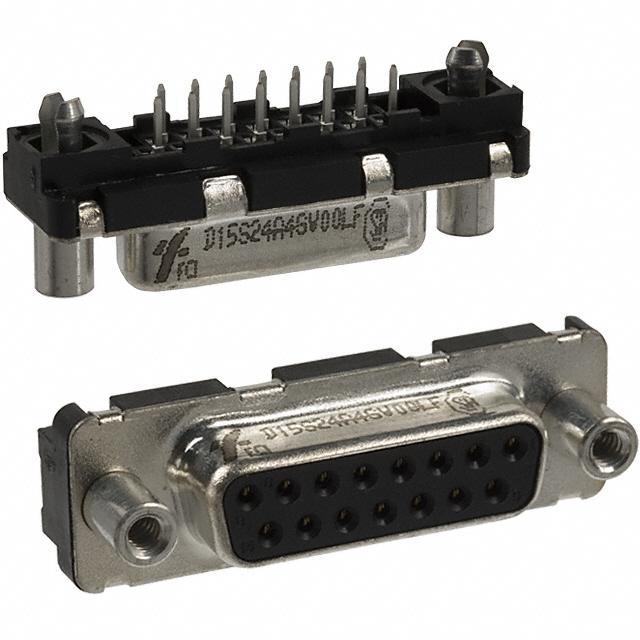

15 Position D-Sub Receptacle, Female Sockets Connector
Flange Feature:
Mating Side, Female Screwlock (4-40)
Current Rating:
5A
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
Flash
Number of Positions:
15
Number of Rows:
2
Standard Package:
25
Manufacturer:
Amphenol FCI
Voltage Rating:
300V
Material Flammability Rating:
UL94 V-0
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Features:
Board Lock
Mounting Type:
Through Hole
Color:
Black
Series:
Delta D
Shell Material, Finish:
Steel, Tin Plated
Packaging:
Tray
Contact Type:
Signal
Other Names:
609-1497
Contact Material:
Phosphor Bronze
