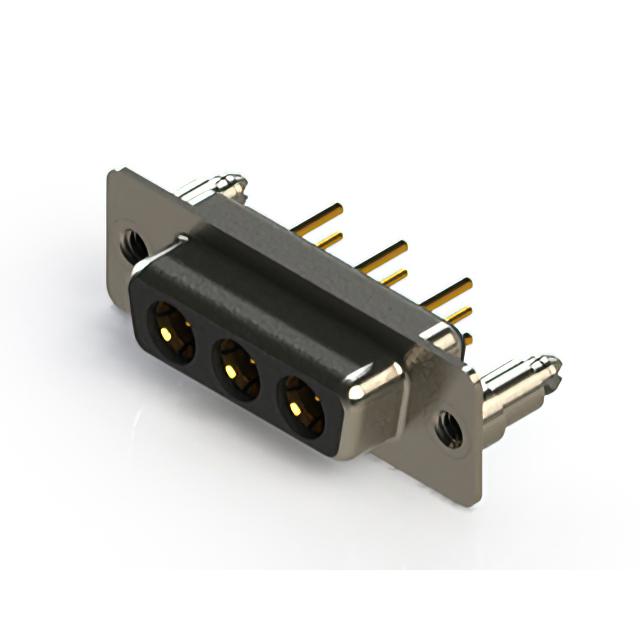

EDAC Inc. 628-3W3-224-5N5

628-3W3-224-5N5 EDAC Inc.
EDAC Inc.

Product Information

Shell Size, Connector Layout:
2 (DA, A) - 3W3
Flange Feature:
Board Side (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub, Combo
Contact Finish Thickness:
Flash
Dielectric Material:
Polyester Thermoplastic
Number of Positions:
3 (Coax)
Voltage Rating:
125V
REACH Status:
REACH Unaffected
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Package:
Tray
Wire Gauge:
-
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Backset Spacing:
-
Ingress Protection:
-
Features:
Board Lock, Shielded
Mounting Type:
Through Hole
Color:
Black
Series:
628-C
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Coax and Signal
Contact Material:
Copper Alloy
Base Product Number:
628-3W3
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 628-3W3-224-5N5. 2 (da, a) - 3w3 is the shell size and connector layout. Furthermore, board side (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub, combo connector style. It has flash of contact finishing thickness. Moreover, the product is constructed from highly polyester thermoplastic dielectric material. The product carries possible position value of 3 (coax). Moreover, the product has a nominal 125v voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 18 weeks standard lead time. The splendid features of the product include board lock, shielded. The product is available in through hole configuration. It has a classic black colour. The product 628-c, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of coax and signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 628-3w3, a base product number of the product. The product is designated with the ear99 code number.
