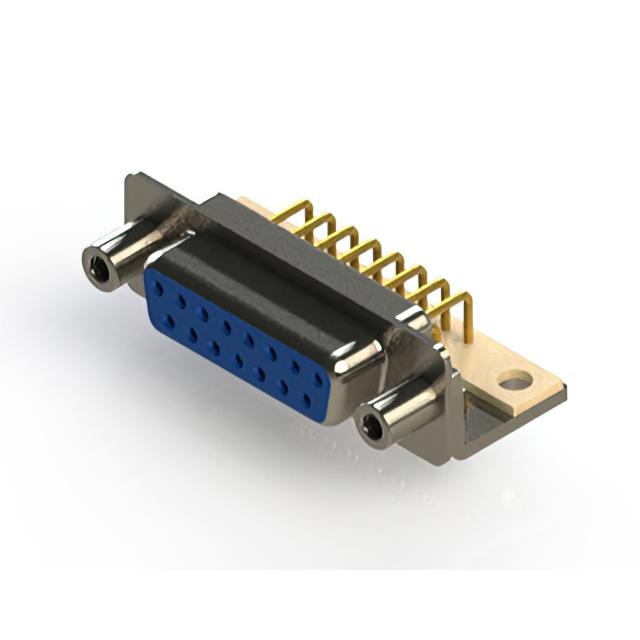

EDAC Inc. 630-M15-340-LN6

630-M15-340-LN6 EDAC Inc.
EDAC Inc.

Product Information

Shell Size, Connector Layout:
2 (DA, A)
Flange Feature:
Mating Side (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
15.0µin (0.38µm)
Dielectric Material:
Polyamide (PA6T), Nylon 6T
Number of Positions:
15
REACH Status:
REACH Unaffected
edacadModel:
630-M15-340-LN6 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/11083346
Voltage Rating:
-
Wire Gauge:
-
Contact Form:
Machined
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
5A
Backset Spacing:
0.370" (9.40mm)
Ingress Protection:
-
Features:
Mounting Brackets, Shielded
Mounting Type:
Through Hole, Right Angle
Color:
Blue
Series:
630-M
Shell Material, Finish:
Steel, Nickel Plated
Packaging:
Tray
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
630-M15
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 630-M15-340-LN6. 2 (da, a) is the shell size and connector layout. Furthermore, mating side (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub connector style. It has 15.0µin (0.38µm) of contact finishing thickness. Moreover, the product is constructed from highly polyamide (pa6t), nylon 6t dielectric material. The product carries possible position value of 15. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It also has a machined contact form. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 5a. Furthermore, 0.370" (9.40mm) is the given bracket spacing. The splendid features of the product include mounting brackets, shielded. The product is available in through hole, right angle configuration. It has a classic blue colour. The product 630-m, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. In addition, tray is the available packaging type of the product. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 630-m15, a base product number of the product. The product is designated with the ear99 code number.
