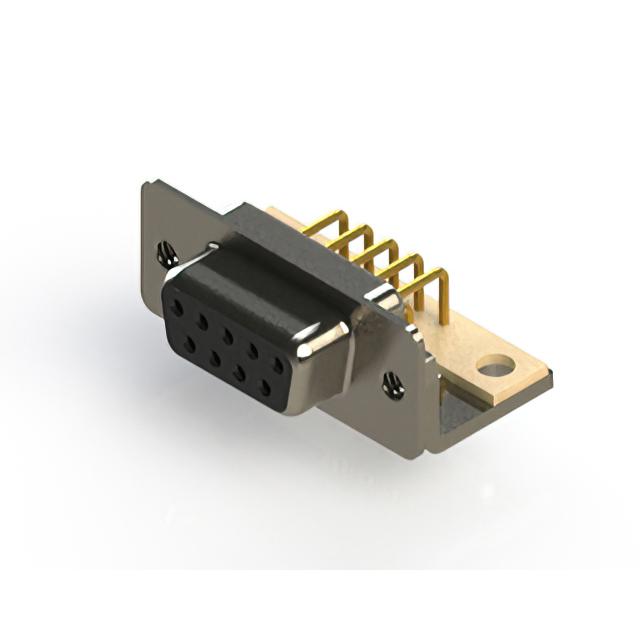

EDAC Inc. 630-M09-240-BN4

630-M09-240-BN4 EDAC Inc.
EDAC Inc.

Product Information

Shell Size, Connector Layout:
1 (DE, E)
Flange Feature:
Housing/Shell (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
Flash
Dielectric Material:
Polyamide (PA6T), Nylon 6T
Number of Positions:
9
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
630-M09-240-BN4 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10898108
Package:
Tray
Wire Gauge:
-
Contact Form:
Machined
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
5A
Backset Spacing:
0.370" (9.40mm)
Ingress Protection:
-
Features:
Mounting Brackets, Shielded
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
630-M
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
630-M09
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 630-M09-240-BN4. 1 (de, e) is the shell size and connector layout. Furthermore, housing/shell (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub connector style. It has flash of contact finishing thickness. Moreover, the product is constructed from highly polyamide (pa6t), nylon 6t dielectric material. The product carries possible position value of 9. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . It also has a machined contact form. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 5a. Furthermore, 0.370" (9.40mm) is the given bracket spacing. The splendid features of the product include mounting brackets, shielded. The product is available in through hole, right angle configuration. It has a classic black colour. The product 630-m, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 630-m09, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
629M,630M Series Ordering Guide(Datasheets)
pdf icon
630-M09-240-BN4 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
