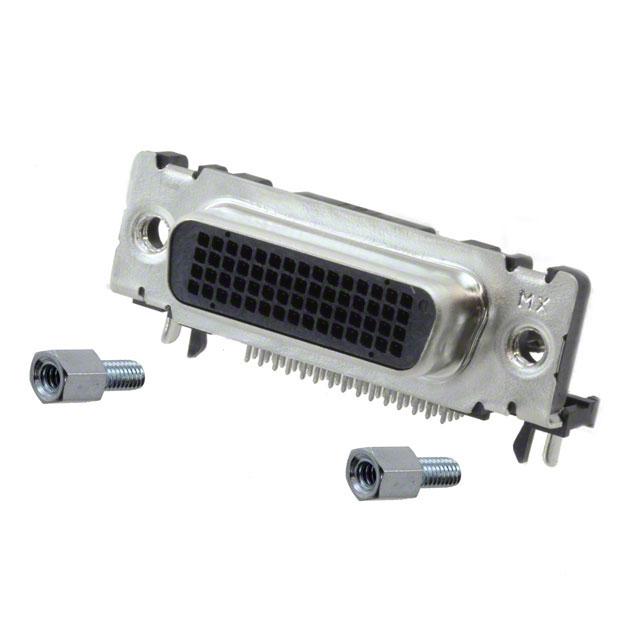

Molex 0709282003

Enrgtech Part No: ET17961791
|
Manufacturer Part No:
0709282003
|
Manufacturer: Molex

Product Information

Shell Size, Connector Layout:

0.050 Pitch x 0.050 Row to Row

Flange Feature:

Mating Side, Female Screwlock (4-40)

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-20°C ~ 80°C

Connector Style:

D-Type, Board to Board, Matrix

Contact Finish Thickness:

30.0µin (0.76µm)

Dielectric Material:

Liquid Crystal Polymer (LCP), Glass Filled

Number of Positions:

Voltage Rating:

40V

edacadModel:

0709282003 Models

Number of Rows:

Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0709282003. 0.050 pitch x 0.050 row to row is the shell size and connector layout. Furthermore, mating side, female screwlock (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -20°c ~ 80°c operating temperature range. It comes in d-type, board to board, matrix connector style. It has 30.0µin (0.76µm) of contact finishing thickness. Moreover, the product is constructed from highly liquid crystal polymer (lcp), glass filled dielectric material. The product carries possible position value of 60. Moreover, the product has a nominal 40v voltage rating. It comes in 4 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tube package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 1a. Furthermore, 0.208" (5.28mm) is the given bracket spacing. The splendid features of the product include board lock, shielded. The product is available in board edge, through hole, right angle configuration. It has a classic black colour. The product low force helix (lfh) 70928, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 070928, a base product number of the product. The product is designated with the ear99 code number.

0709282003 RoHS Cert of Compliance(Environmental Information)

Alternate Material 05/Mar/2014(PCN Design/Specification)

Mult Device EOL 17/Jul/2017(PCN Obsolescence/ EOL)

0709282003(Datasheets)

70928-2003.pdf(3D Drawings)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 0709282003 on website for other similar products.

We accept all major payment methods for all products including ET17961791. Please check your shopping cart at the time of order.

You can order Molex brand products with 0709282003 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in D-Sub Connector Assemblies category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Molex 0709282003. You can also check on our website or by contacting our customer support team for further order details on Molex 0709282003.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET17961791 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17961791.

Yes. We ship 0709282003 Internationally to many countries around the world.
