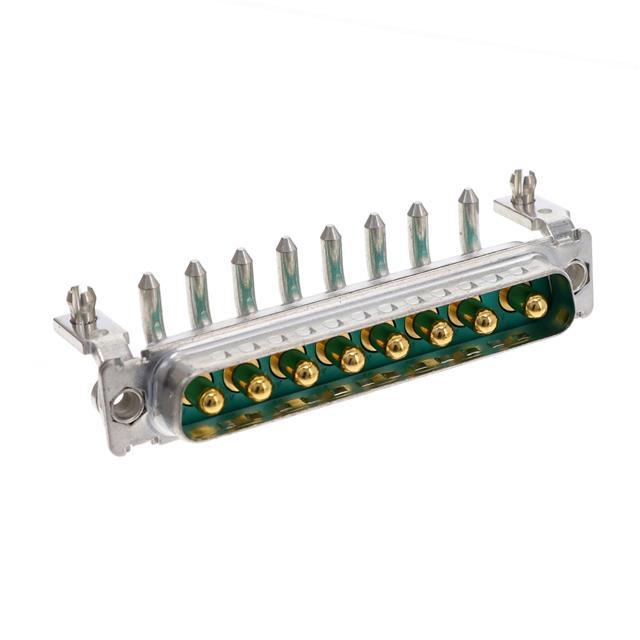

Amphenol ICC (FCI) DCO8W8P543H40LF

DCO8W8P543H40LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Shell Size, Connector Layout:
4 (DC, C) - 8W8
Flange Feature:
Board Side (4-40)
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub, Combo
Contact Finish Thickness:
-
Dielectric Material:
Thermoplastic
Number of Positions:
8 (Power)
Voltage Rating:
300V
REACH Status:
REACH Unaffected
edacadModel:
DCO8W8P543H40LF Models
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4419374
Package:
Tray
Wire Gauge:
-
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
40A
Backset Spacing:
0.458" (11.64mm)
Ingress Protection:
-
Features:
Board Lock, Grounding Indents, Mounting Brackets
Mounting Type:
Through Hole, Right Angle
Color:
-
Series:
DW
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Power
Contact Material:
Brass
Base Product Number:
DCO8W8
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is DCO8W8P543H40LF. 4 (dc, c) - 8w8 is the shell size and connector layout. Furthermore, board side (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub, combo connector style. Moreover, the product is constructed from highly thermoplastic dielectric material. The product carries possible position value of 8 (power). Moreover, the product has a nominal 300v voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 40a. Furthermore, 0.458" (11.64mm) is the given bracket spacing. The splendid features of the product include board lock, grounding indents, mounting brackets. The product is available in through hole, right angle configuration. The product dw, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of power. The product is made from sturdy brass materials. Moreover, it corresponds to dco8w8, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Location 08/Mar/2017(PCN Assembly/Origin)
pdf icon
Multiple Devices Plating 05/Mar/2018(PCN Design/Specification)
pdf icon
DW Series Documentation Change 11/Oct/2018(PCN Design/Specification)
pdf icon
DxxyyyP5xxyzz(LF) Drawing(Product Drawings)
