Current Rating:
2.0A
Dimensions:
69.8 x 12.93 x 22.3mm
Mounting Type:
Through Hole
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
69.8mm

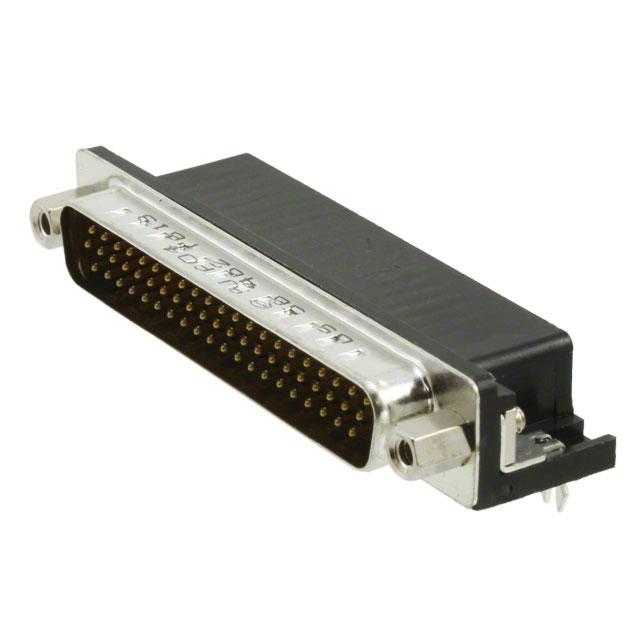

D Connector Type:
High Density D-Sub
Housing Material:
Steel
Width:
12.93mm
Depth:
22.3mm
Contact Plating:
Gold
Pitch:
2.41mm
Mounting Hardware:
4-40 UNC Female Screwlocks, Boardlocks
Number of Contacts:
62
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Copper Alloy
Shell Size, Connector Layout:
4 (DC, C) High Density
Flange Feature:
Mating Side, Female Screwlock (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Connector Style:
D-Sub, High Density
Contact Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
62
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
09564627813 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3180921
Package:
Bulk
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Plug, Male Pins
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
2A
Backset Spacing:
0.350" (8.89mm)
Ingress Protection:
-
Features:
Board Lock, Grounding Indents
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
-
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
