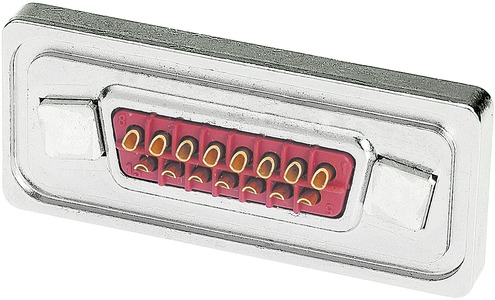

HARTING 09676156715

09676156715 HARTING
HARTING

Product Information

Shell Size, Connector Layout:
2 (DA, A)
Flange Feature:
Housing/Shell (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 70°C
Connector Style:
D-Sub
Contact Finish Thickness:
30.0µin (0.76µm)
Dielectric Material:
Thermoplastic, Glass Filled
Number of Positions:
15
title:
09676156715
REACH Status:
REACH Unaffected
edacadModel:
09676156715 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4323256
Voltage Rating:
-
Wire Gauge:
20 AWG
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold or Gold-Palladium
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder Cup
standardLeadTime:
24 Weeks
Current Rating (Amps):
5A
Backset Spacing:
-
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Color:
-
Series:
-
Shell Material, Finish:
Brass, Tin Plated
Packaging:
Bulk
Contact Type:
Signal
Contact Material:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09676156715. 2 (da, a) is the shell size and connector layout. Furthermore, housing/shell (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 70°c operating temperature range. It comes in d-sub connector style. It has 30.0µin (0.76µm) of contact finishing thickness. Moreover, the product is constructed from highly thermoplastic, glass filled dielectric material. The product carries possible position value of 15. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a wire gauge of 20 awg. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold or gold-palladium contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder cup termination style. It has a long 24 weeks standard lead time. Additionally, the product's output is 5a. It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount configuration. It is made from durable shell materials and has an excellent finishing such as brass, tin plated. In addition, bulk is the available packaging type of the product. It has typical contact type of signal. The product is designated with the ear99 code number.
