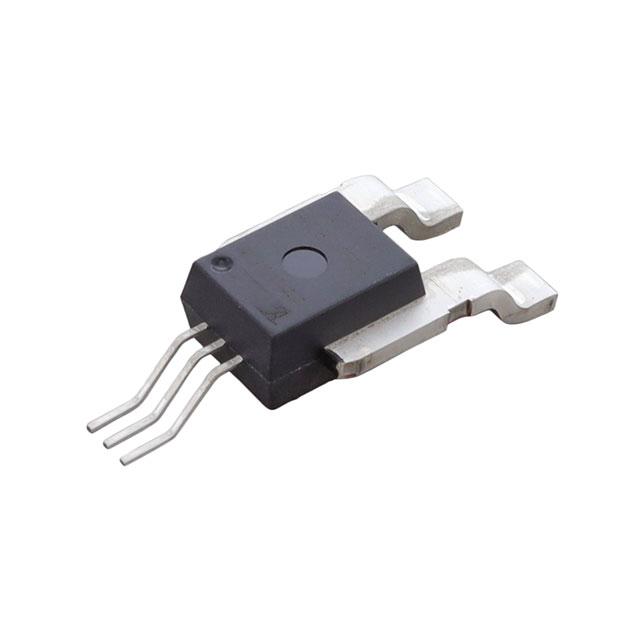

Allegro MicroSystems ACS772KCB-150B-SMT-T

ACS772KCB-150B-SMT-T Allegro MicroSystems
Allegro MicroSystems

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Polarization:
Bidirectional
Operating Temperature:
-40°C ~ 125°C (TA)
Package / Case:
5-CB Formed Leads, SMT
Accuracy:
-
Sensor Type:
Hall Effect
REACH Status:
REACH Unaffected
edacadModel:
ACS772KCB-150B-SMT-T Models
Current - Supply (Max):
15mA
Number of Channels:
1
edacadModelUrl:
/en/models/13979041
Response Time:
2.5µs
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Sensing:
150A
Qualification:
AEC-Q100
Output:
Ratiometric, Voltage
standardLeadTime:
12 Weeks
For Measuring:
AC/DC
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Sensitivity:
13.33mV/A
Linearity:
±0.9%
Supplier Device Package:
5-CB
Frequency:
DC ~ 200kHz
Voltage - Supply:
4.5V ~ 5.5V
ECCN:
EAR99
Checking for live stock

This is manufactured by Allegro MicroSystems. The manufacturer part number is ACS772KCB-150B-SMT-T. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product features a [Ploarization] polarity. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in 5-cb formed leads, smt. These sensors are sort of hall effect. In addition, it is reach unaffected. Moreover, the Maximum Current Supply of the product is 15ma It is supplied with 1 channels. It responds within 2.5µs. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. It features sensing current of 150a. Moreover, the product allow the output of ratiometric, voltage. It has a long 12 weeks standard lead time. It is ideal for measuring ac/dc. The product is available in surface mount configuration. The product is automotive, a grade of class. The sensitivity given includes 13.33mv/a. A product has a linearity of ±0.9%. 5-cb is the supplier device package value. Supplied with dc ~ 200khz of frequency. It has optimum voltage supply of 4.5v ~ 5.5v. The product is designated with the ear99 code number.

pdf icon
Clear Tube Change 16/Nov/2022(PCN Packaging)
pdf icon
Tape Change 27/Jan/2023(PCN Packaging)
