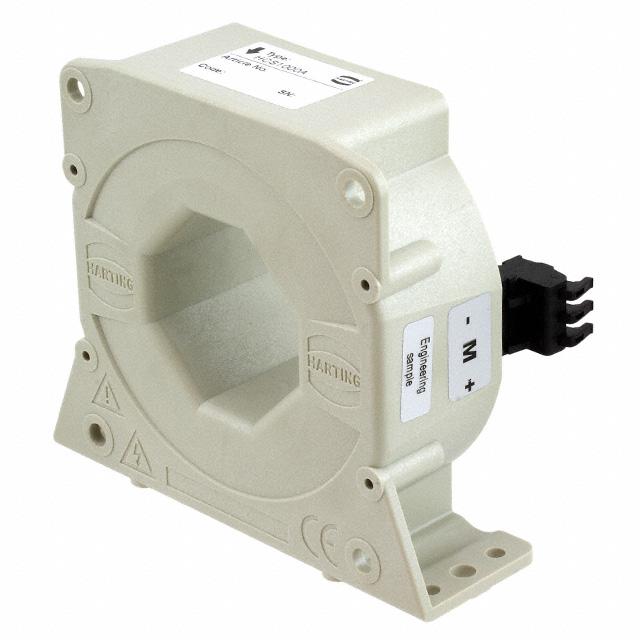

HARTING 20311000101

20311000101 HARTING
20311000101
20311000101
ET12158537
ET12158537
Current Sensors
Current Sensors
HARTING

Product Information

Sensor Type:
Hall Effect
Mounting Type:
Panel Mount
Frequency Bandwidth:
100 kHz
Bore Size:
2 x 38.5mm
Height:
95mm
Width:
110mm
Depth:
34mm
Nominal Current:
1000A
Supply Voltage:
15 → 24 V dc
Minimum Operating Temperature:
-40°C
Output Current Range:
200mA
Maximum Operating Temperature:
+85°C
Accuracy:
±0.4 %
HTSUS:
9030.33.3800
RoHS Status:
ROHS3 Compliant
Polarization:
Bidirectional
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Module, Single Pass Through
Accuracy:
±0.4%
Sensor Type:
Hall Effect, Closed Loop
REACH Status:
REACH Unaffected
edacadModel:
20311000101 Models
Current - Supply (Max):
28mA
Number of Channels:
1
edacadModelUrl:
/en/models/3974521
Response Time:
1µs
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Sensing:
1000A
Output:
Ratiometric, Voltage
For Measuring:
AC/DC
Mounting Type:
Panel Mount
Series:
-
Sensitivity:
-
Linearity:
±0.1%
Supplier Device Package:
-
Frequency:
100kHz
Voltage - Supply:
15V ~ 24V
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 20311000101. These sensors are sort of hall effect. The product is available in panel mount configuration. It has a 100 khz frequency bandwidth . The bore has a 2 x 38.5mm size. In addition, the height is 95mm. Furthermore, the product is 110mm wide. The product comes in 34mm depth. In addition, it has about 1000a nominal current . Features 15 → 24 v dc supply voltage. Whereas, the minimum operating temperature of the product is -40°c. Moreover, its output current range is 200ma . It has a maximum operating temperature of +85°c. It provides high accuracy of ±0.4 %. It is assigned with possible HTSUS value of 9030.33.3800. The product is rohs3 compliant. The product features a [Ploarization] polarity. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in module, single pass through. It provides high accuracy of ±0.4%. These sensors are sort of hall effect, closed loop. In addition, it is reach unaffected. Moreover, the Maximum Current Supply of the product is 28ma It is supplied with 1 channels. It responds within 1µs. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It features sensing current of 1000a. Moreover, the product allow the output of ratiometric, voltage. It is ideal for measuring ac/dc. A product has a linearity of ±0.1%. Supplied with 100khz of frequency. It has optimum voltage supply of 15v ~ 24v. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Multiple Devices 01/Jul/2022(PCN Obsolescence/ EOL)
pdf icon
20311000101 Prod Declaration Cert(Datasheets)
pdf icon
20311000101 Datasheet(Datasheets)
pdf icon
20311000101(Datasheets)
pdf icon
20311000101 Drawing(Product Drawings)
