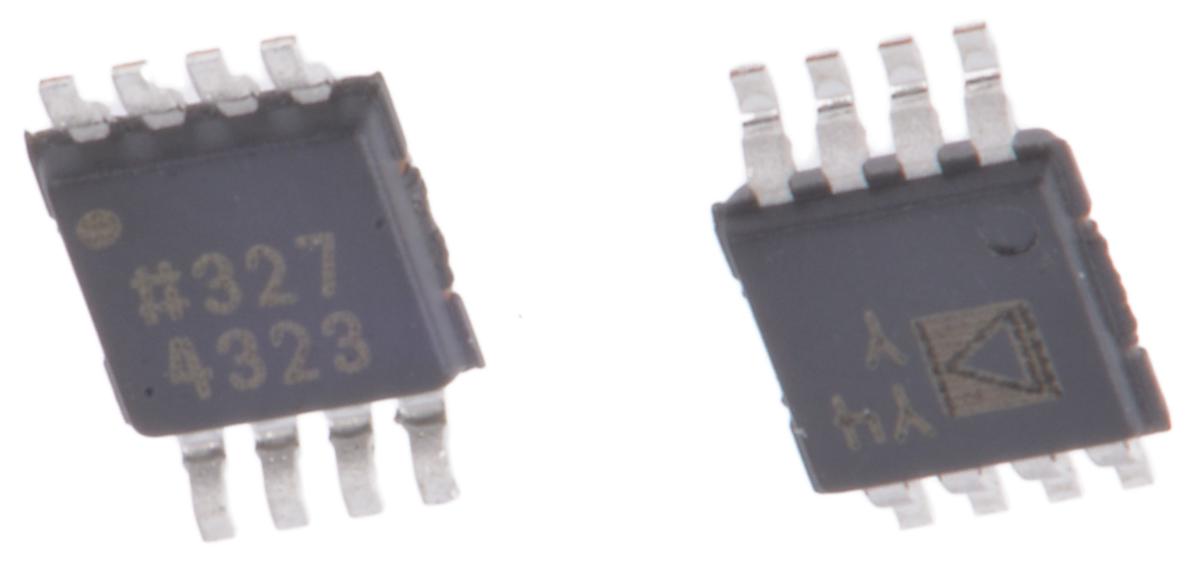

Analog Devices AD8417BRMZ, Current Sense Amplifier Single Bidirectional 8-Pin MSOP

Enrgtech Part No: ET14102250
|
Manufacturer Part No:
AD8417BRMZ
|
Manufacturer: Analog Devices

AD8417BRMZ Analog Devices , Current Sense Amplifier Single Bidirectional 8-Pin MSOP

Product Information

Minimum CMRR:

90dB

Dimensions:

3.2 x 3.2 x 0.95mm

Mounting Type:

Surface Mount

Power Supply Type:

Single

Number of Channels per Chip:

Maximum Supply Current:

130 μA

Output Type:

Bidirectional

Height:

0.95mm

Typical Single Supply Voltage:

5 V

Width:

3.2mm

Length:

3.2mm

Package Type:

MSOP

Checking for live stock

This is Current Sense Amplifier Single Bidirectional 8-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD8417BRMZ. It is designed with a minimum 90db CMRR . The given dimensions of the product include 3.2 x 3.2 x 0.95mm. The product is available in surface mount configuration. It is a type of single power supply. It comprises 1 channels per chip. Moreover, it has a maximum 130 μa supply current . Furthermore, it has abidirectional output. In addition, the height is 0.95mm. It has a typical single supply voltage of 5 v. Furthermore, the product is 3.2mm wide. Its accurate length is 3.2mm. The package is a sort of msop. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. While its minimum operating supply voltage is 2.7 v. It has a maximum operating temperature of +125 °c. It contains 8 pins.

AD8417 Bidirectional, Zero Drift, Current Sense Amplifier(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

AD8417 SPICE Macro Model(Technical Reference)

Your Rating

Reviews

Be the first to review.

Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search AD8417BRMZ on website for other similar products.

We accept all major payment methods for all products including ET14102250. Please check your shopping cart at the time of order.

You can order Analog Devices brand products with AD8417BRMZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Current Sensing Amplifiers category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Analog Devices AD8417BRMZ, Current Sense Amplifier Single Bidirectional 8-Pin MSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD8417BRMZ, Current Sense Amplifier Single Bidirectional 8-Pin MSOP.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14102250 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14102250.

Yes. We ship AD8417BRMZ Internationally to many countries around the world.
