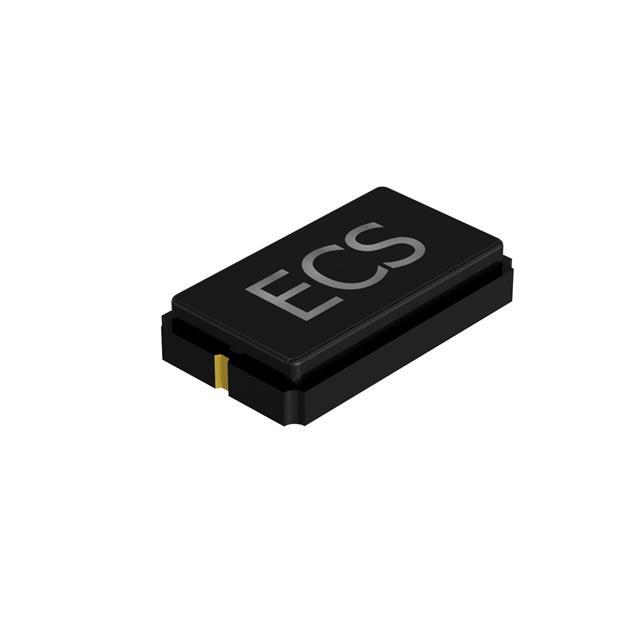

ECS Inc. ECS-320-20-20A-F-TR

ECS-320-20-20A-F-TR ECS Inc.
ECS Inc.

Product Information

Ratings:
-
Frequency Tolerance:
±30ppm
HTSUS:
8541.60.0060
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
40 Ohms
Frequency Stability:
±50ppm
Operating Temperature:
-10°C ~ 70°C
Package / Case:
2-SMD, No Lead
Type:
MHz Crystal
Height - Seated (Max):
0.067" (1.70mm)
REACH Status:
REACH Unaffected
Package:
Tape & Reel (TR)
Size / Dimension:
0.276" L x 0.197" W (7.00mm x 5.00mm)
standardLeadTime:
53 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Load Capacitance:
20pF
Mounting Type:
Surface Mount
Operating Mode:
Fundamental
Series:
CSM-8A
Frequency:
32 MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by ECS Inc.. The manufacturer part number is ECS-320-20-20A-F-TR. It has a ±30ppm of frequency tolerance. It is assigned with possible HTSUS value of 8541.60.0060. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 40 ohms. It also carries ±50ppm of stable frequency value. The product has -10°c ~ 70°c operating temperature range. Moreover, the product comes in 2-smd, no lead. It comes in mhz crystal configuration. It has the maximum seated height of 0.067" (1.70mm). In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . The product's diameters include 0.276" l x 0.197" w (7.00mm x 5.00mm). It has a long 53 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It features 20pf load capacitance. The product is available in surface mount configuration. The product's operating mode include fundamental. The product csm-8a, is a highly preferred choice for users. Supplied with 32 mhz of frequency. The product is designated with the ear99 code number.

pdf icon
CSM-8 Series Datasheet(Datasheets)
