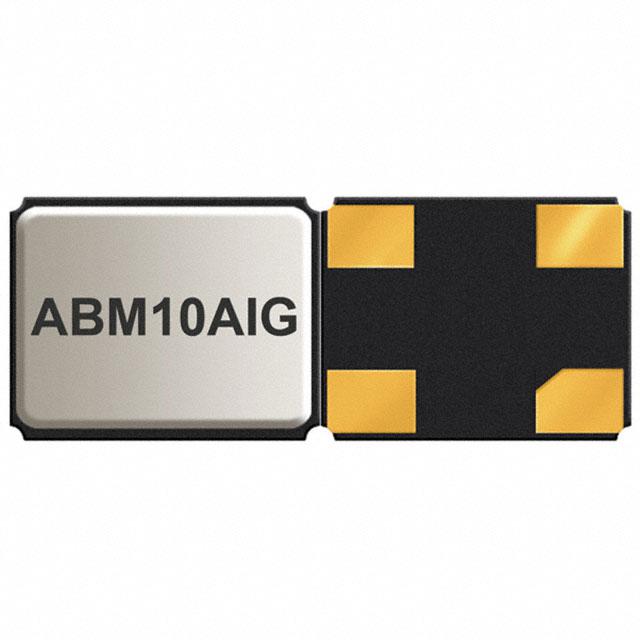

Abracon LLC ABM10AIG-12.000MHZ-2Z-T

ABM10AIG-12-000MHZ-2Z-T Abracon LLC ABM10AIG-12.000MHZ-2Z-T
Abracon LLC

Product Information

Ratings:
AEC-Q200
Frequency Tolerance:
±20ppm
HTSUS:
8541.60.0050
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
150 Ohms
Frequency Stability:
±50ppm
Operating Temperature:
-40°C ~ 125°C
Package / Case:
4-SMD, No Lead
Type:
MHz Crystal
Height - Seated (Max):
0.026" (0.65mm)
REACH Status:
REACH Unaffected
edacadModel:
ABM10AIG-12.000MHZ-2Z-T Models
edacadModelUrl:
/en/models/9818376
Package:
Tape & Reel (TR)
Size / Dimension:
0.098" L x 0.079" W (2.50mm x 2.00mm)
standardLeadTime:
29 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Load Capacitance:
10pF
Mounting Type:
Surface Mount
Operating Mode:
Fundamental
Series:
ABM10AIG
Frequency:
12 MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Abracon LLC. The manufacturer part number is ABM10AIG-12.000MHZ-2Z-T. It is rated with aec-q200. It has a ±20ppm of frequency tolerance. It is assigned with possible HTSUS value of 8541.60.0050. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 150 ohms. It also carries ±50ppm of stable frequency value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in 4-smd, no lead. It comes in mhz crystal configuration. It has the maximum seated height of 0.026" (0.65mm). In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . The product's diameters include 0.098" l x 0.079" w (2.50mm x 2.00mm). It has a long 29 weeks standard lead time. Its typical moisture sensitivity level is not applicable. It features 10pf load capacitance. The product is available in surface mount configuration. The product's operating mode include fundamental. The product abm10aig, is a highly preferred choice for users. Supplied with 12 mhz of frequency. The product is designated with the ear99 code number.

pdf icon
ABM10AIG Series Datasheet(Datasheets)
pdf icon
AIG Crystals Auto/Ind Grade Flyer(Datasheets)
pdf icon
ABM10AIG Datasheet Chg 9/Aug/2019(PCN Design/Specification)
pdf icon
Abracon REACH(Environmental Information)
