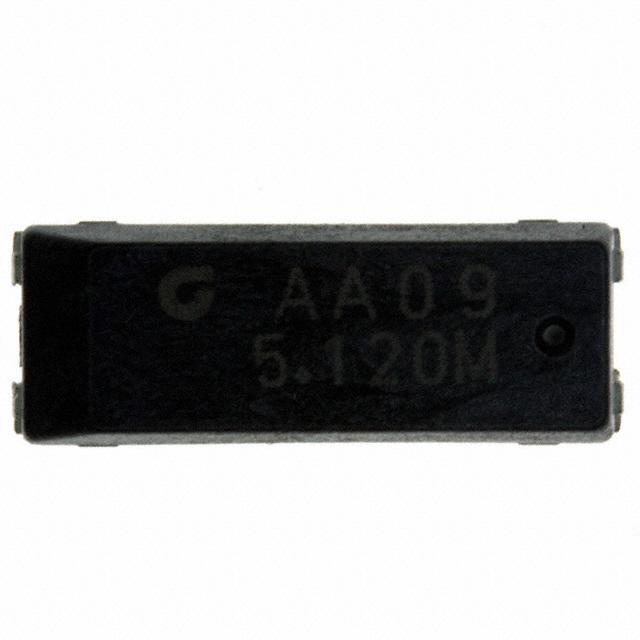

Citizen Finedevice Co Ltd CM309A5.120MABJT

CM309A5-120MABJT Citizen Finedevice Co Ltd CM309A5.120MABJT
Citizen Finedevice Co Ltd

Product Information

Ratings:
-
Frequency Tolerance:
±30ppm
HTSUS:
8541.60.0050
RoHS Status:
RoHS non-compliant
ESR (Equivalent Series Resistance):
150 Ohms
Frequency Stability:
±50ppm
Operating Temperature:
-10°C ~ 60°C
Package / Case:
2-SOJ, 2.85mm pitch
Type:
MHz Crystal
Height - Seated (Max):
0.181" (4.60mm)
REACH Status:
REACH Unaffected
Package:
Cut Tape (CT)
Size / Dimension:
0.528" L x 0.200" W (13.40mm x 5.08mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Load Capacitance:
18pF
Mounting Type:
Surface Mount
Operating Mode:
Fundamental
Series:
CM309A
Frequency:
5.12 MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Citizen Finedevice Co Ltd. The manufacturer part number is CM309A5.120MABJT. It has a ±30ppm of frequency tolerance. It is assigned with possible HTSUS value of 8541.60.0050. The product is rohs non-compliant. It carries ESR (Equivalent Series Resistance) of 150 ohms. It also carries ±50ppm of stable frequency value. The product has -10°c ~ 60°c operating temperature range. Moreover, the product comes in 2-soj, 2.85mm pitch. It comes in mhz crystal configuration. It has the maximum seated height of 0.181" (4.60mm). In addition, it is reach unaffected. It is shipped in cut tape (ct) package . The product's diameters include 0.528" l x 0.200" w (13.40mm x 5.08mm). Its typical moisture sensitivity level is 1 (unlimited). It features 18pf load capacitance. The product is available in surface mount configuration. The product's operating mode include fundamental. The product cm309a, is a highly preferred choice for users. Supplied with 5.12 mhz of frequency. The product is designated with the ear99 code number.
