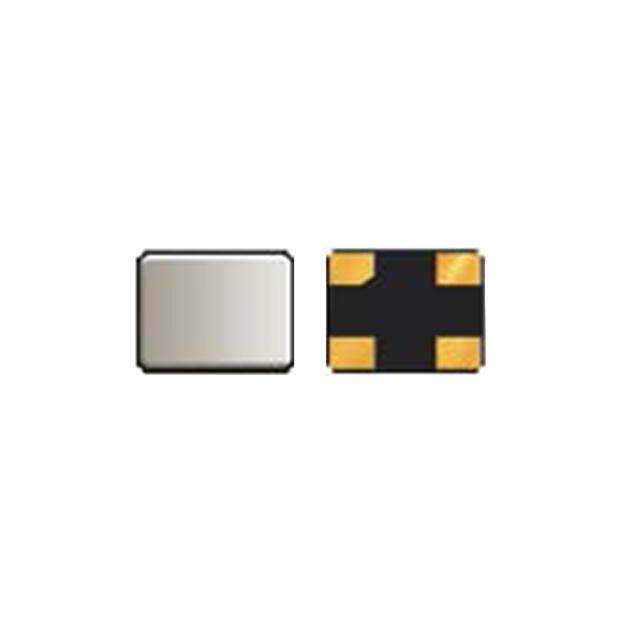

Abracon LLC AAH-438-28.63636MHZ-T3

AAH-438-28-63636MHZ-T3 Abracon LLC AAH-438-28.63636MHZ-T3
Abracon LLC

Product Information

Ratings:
AEC-Q200
Frequency Tolerance:
±20ppm
HTSUS:
8541.60.0060
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
25 Ohms
Frequency Stability:
±50ppm
Operating Temperature:
-40°C ~ 125°C
Package / Case:
4-SMD, No Lead
Type:
MHz Crystal
Height - Seated (Max):
0.031" (0.80mm)
REACH Status:
REACH Unaffected
edacadModel:
AAH-438-28.63636MHZ-T3 Models
edacadModelUrl:
/en/models/7066435
Package:
Tape & Reel (TR)
Size / Dimension:
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Load Capacitance:
12pF
Mounting Type:
Surface Mount
Operating Mode:
Fundamental
Series:
AAH
Frequency:
28.63636 MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Abracon LLC. The manufacturer part number is AAH-438-28.63636MHZ-T3. It is rated with aec-q200. It has a ±20ppm of frequency tolerance. It is assigned with possible HTSUS value of 8541.60.0060. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 25 ohms. It also carries ±50ppm of stable frequency value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in 4-smd, no lead. It comes in mhz crystal configuration. It has the maximum seated height of 0.031" (0.80mm). In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . The product's diameters include 0.126" l x 0.098" w (3.20mm x 2.50mm). Its typical moisture sensitivity level is 1 (unlimited). It features 12pf load capacitance. The product is available in surface mount configuration. The product's operating mode include fundamental. The product aah, is a highly preferred choice for users. Supplied with 28.63636 mhz of frequency. The product is designated with the ear99 code number.

pdf icon
AAH-438 12-APR-2022(PCN Obsolescence/ EOL)
pdf icon
AAH-438-28.63636MHz-T3(Datasheets)
pdf icon
Abracon REACH(Environmental Information)
